NicePool¶

NicePool is a DataFrame-driven plot pool: pre-filter dropdowns, plot-type controls, optional table, named presets, and linked selection between table rows and Plotly points.

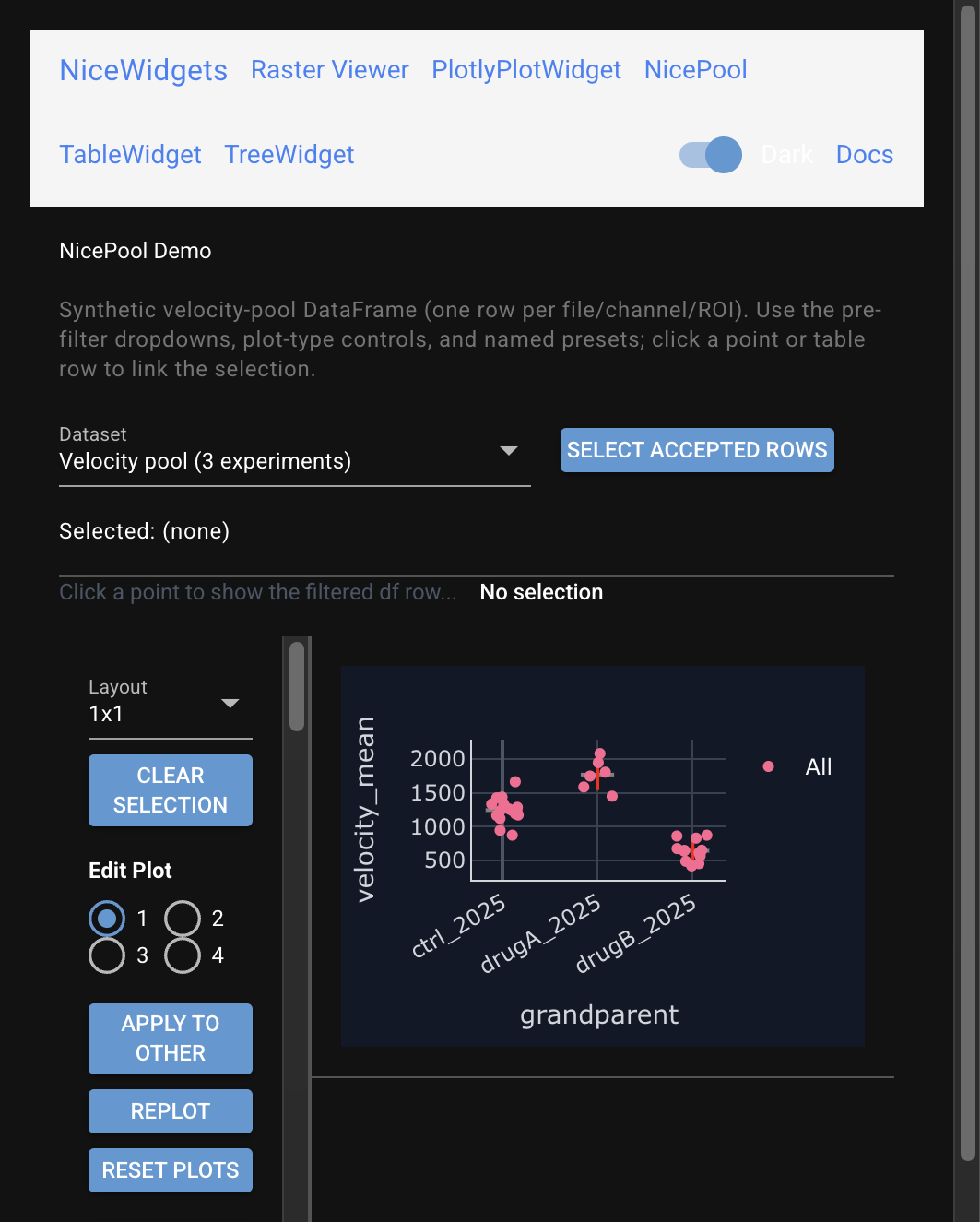

NicePool demo

Embed¶

import pandas as pd
from nicewidgets.nicepool import NicePool, NicePoolConfig

df = pd.DataFrame(
    [
        {'pool_row_id': 'a', 'accept': True, 'channel': 0, 'roi_id': 1, 'velocity_mean': 1.2},
        {'pool_row_id': 'b', 'accept': True, 'channel': 1, 'roi_id': 1, 'velocity_mean': 2.4},
    ]
)

pool = NicePool(
    df,
    config=NicePoolConfig(
        unique_row_id_col='pool_row_id',
        show_table_widget=True,
        enable_config_persistence=False,
        dark_mode=False,
    ),
    on_row_selected=lambda row_id, row: print(row_id, row),
)
pool.build()

DataFrame contract (also in the class docstring):

unique unique_row_id_col (default pool_row_id)
optional categorical pre-filters (accept, channel, roi_id auto-detected)
at least one numeric column for the y-axis

Demo: examples/nicepool/ (also /nicepool in the combined demo).

Configuration¶

Pass a NicePoolConfig for filters, table visibility, presets, persistence, and initial plot layout. Prefer initial_plot_config for deterministic first paint without reading disk.

API¶

nicewidgets.nicepool.nice_pool.NicePool ¶

Bases: PlotPoolController

General-purpose DataFrame plotting and selection widget.

NicePool preserves the original plot-pool GUI behavior while exposing a small stable API for host applications and scripts. It renders pre-filter dropdowns, plot-type controls, named presets, an optional data table, and one or more linked Plotly plots.

DataFrame contract

df must contain the column named by config.unique_row_id_col (default "pool_row_id") with unique, non-empty string-able values. This column links table rows, plot points, and :meth:select_points_by_row_ids.
Categorical pre-filter columns are taken from config.pre_filter_columns when given, otherwise auto-detected from config.auto_pre_filter_columns (accept, channel, roi_id). Missing columns are ignored.
At least one numeric column is needed for the y-axis.

See examples/nicepool for a runnable demo built on this contract.

Parameters:

Name	Type	Description	Default
`df`	`DataFrame`	Source DataFrame satisfying the contract above.	required
`config`	`NicePoolConfig \| None`	Optional NicePool configuration. Defaults to `NicePoolConfig()`.	`None`
`on_row_selected`	`Callable[[str, dict[str, object]], None] \| None`	Optional callback `(row_id, row_dict) -> None` invoked when a table row is selected. Overrides `config.on_table_row_selected`.	`None`
`on_refresh_requested`	`Callable[[], DataFrame] \| None`	Optional callback `() -> pd.DataFrame` invoked by the refresh button; its return value replaces the data. Overrides `config.on_refresh_requested`.	`None`

Source code in src/nicewidgets/nicepool/nice_pool.py

class NicePool(PlotPoolController):
    """General-purpose DataFrame plotting and selection widget.

    ``NicePool`` preserves the original plot-pool GUI behavior while exposing a
    small stable API for host applications and scripts. It renders pre-filter
    dropdowns, plot-type controls, named presets, an optional data table, and
    one or more linked Plotly plots.

    DataFrame contract:
        - ``df`` must contain the column named by ``config.unique_row_id_col``
          (default ``"pool_row_id"``) with unique, non-empty string-able values.
          This column links table rows, plot points, and
          :meth:`select_points_by_row_ids`.
        - Categorical pre-filter columns are taken from
          ``config.pre_filter_columns`` when given, otherwise auto-detected from
          ``config.auto_pre_filter_columns`` (``accept``, ``channel``,
          ``roi_id``). Missing columns are ignored.
        - At least one numeric column is needed for the y-axis.

    See ``examples/nicepool`` for a runnable demo built on this contract.

    Args:
        df: Source DataFrame satisfying the contract above.
        config: Optional NicePool configuration. Defaults to ``NicePoolConfig()``.
        on_row_selected: Optional callback ``(row_id, row_dict) -> None`` invoked
            when a table row is selected. Overrides ``config.on_table_row_selected``.
        on_refresh_requested: Optional callback ``() -> pd.DataFrame`` invoked by
            the refresh button; its return value replaces the data. Overrides
            ``config.on_refresh_requested``.
    """

    def __init__(
        self,
        df: pd.DataFrame,
        *,
        config: NicePoolConfig | None = None,
        on_row_selected: Callable[[str, dict[str, object]], None] | None = None,
        on_refresh_requested: Callable[[], pd.DataFrame] | None = None,
    ) -> None:
        cfg = config if config is not None else NicePoolConfig()
        pre_filter_columns = resolve_pre_filter_columns(
            [str(column) for column in df.columns],
            explicit_columns=cfg.pre_filter_columns,
            auto_columns=cfg.auto_pre_filter_columns,
        )
        table_callback = on_row_selected if on_row_selected is not None else cfg.on_table_row_selected
        refresh_callback = on_refresh_requested if on_refresh_requested is not None else cfg.on_refresh_requested
        controller_config = PlotPoolConfig(
            pre_filter_columns=list(pre_filter_columns),
            unique_row_id_col=cfg.unique_row_id_col,
            db_type=cfg.db_type,
            app_name=cfg.app_name,
            config_path=cfg.config_path,
            plot_state=cfg.plot_state,
            initial_plot_config=cfg.initial_plot_config,
            on_table_row_selected=table_callback,
            on_refresh_requested=refresh_callback,
            show_save_button=cfg.show_save_button,
            show_selection_feedback=cfg.show_selection_feedback,
            show_table_widget=cfg.show_table_widget,
            enable_config_persistence=cfg.enable_config_persistence,
            dark_mode=cfg.dark_mode,
            enable_plot_presets=cfg.enable_plot_presets,
            plot_preset_path=cfg.plot_preset_path,
        )
        super().__init__(df, config=controller_config)
        self.nicepool_config = cfg
        self.pre_filter_columns = tuple(pre_filter_columns)

    def build(self, parent: ui.element | None = None, *, container: ui.element | None = None) -> ui.element:
        """Build the NicePool UI.

        Args:
            parent: Optional NiceGUI parent element.
            container: Optional legacy container argument.

        Returns:
            Root NiceGUI element containing the widget.
        """
        target = container if container is not None else parent
        if target is None:
            root = ui.column().classes(NICEPOOL_ROOT_CLASSES)
        else:
            with target:
                root = ui.column().classes(NICEPOOL_ROOT_CLASSES)
        super().build(container=root)
        return root

    def relayout_plots(self) -> None:
        """Rebuild Plotly figures after the widget container resizes.

        Returns:
            None.
        """
        super().relayout_plots()

    def set_dataframe(self, df: pd.DataFrame) -> None:
        """Replace the source DataFrame and refresh the widget.

        Args:
            df: New source DataFrame.
        """
        self.update_df(df)

    def set_dark_mode(self, enabled: bool) -> None:
        """Set the Plotly layout theme from a dark-mode flag.

        Args:
            enabled: Whether dark mode is enabled.

        Returns:
            None.
        """
        super().set_dark_mode(enabled)

    def select_points_by_row_ids(
        self,
        row_ids: set[str] | list[str] | tuple[str, ...],
    ) -> None:
        """Programmatically select points matching any of the given row ids.

        Args:
            row_ids: Values from ``unique_row_id_col`` identifying rows to highlight.

        Returns:
            None.
        """
        super().select_points_by_row_ids(row_ids)

build ¶

build(
    parent: element | None = None,
    *,
    container: element | None = None,
) -> ui.element

Build the NicePool UI.

Parameters:

Name	Type	Description	Default
`parent`	`element \| None`	Optional NiceGUI parent element.	`None`
`container`	`element \| None`	Optional legacy container argument.	`None`

Returns:

Type	Description
`element`	Root NiceGUI element containing the widget.

Source code in src/nicewidgets/nicepool/nice_pool.py

def build(self, parent: ui.element | None = None, *, container: ui.element | None = None) -> ui.element:
    """Build the NicePool UI.

    Args:
        parent: Optional NiceGUI parent element.
        container: Optional legacy container argument.

    Returns:
        Root NiceGUI element containing the widget.
    """
    target = container if container is not None else parent
    if target is None:
        root = ui.column().classes(NICEPOOL_ROOT_CLASSES)
    else:
        with target:
            root = ui.column().classes(NICEPOOL_ROOT_CLASSES)
    super().build(container=root)
    return root

relayout_plots ¶

relayout_plots() -> None

Rebuild Plotly figures after the widget container resizes.

Returns:

Type	Description
`None`	None.

Source code in src/nicewidgets/nicepool/nice_pool.py

def relayout_plots(self) -> None:
    """Rebuild Plotly figures after the widget container resizes.

    Returns:
        None.
    """
    super().relayout_plots()

set_dataframe ¶

set_dataframe(df: DataFrame) -> None

Replace the source DataFrame and refresh the widget.

Parameters:

Name	Type	Description	Default
`df`	`DataFrame`	New source DataFrame.	required

Source code in src/nicewidgets/nicepool/nice_pool.py

def set_dataframe(self, df: pd.DataFrame) -> None:
    """Replace the source DataFrame and refresh the widget.

    Args:
        df: New source DataFrame.
    """
    self.update_df(df)

set_dark_mode ¶

set_dark_mode(enabled: bool) -> None

Set the Plotly layout theme from a dark-mode flag.

Parameters:

Name	Type	Description	Default
`enabled`	`bool`	Whether dark mode is enabled.	required

Returns:

Type	Description
`None`	None.

Source code in src/nicewidgets/nicepool/nice_pool.py

def set_dark_mode(self, enabled: bool) -> None:
    """Set the Plotly layout theme from a dark-mode flag.

    Args:
        enabled: Whether dark mode is enabled.

    Returns:
        None.
    """
    super().set_dark_mode(enabled)

select_points_by_row_ids ¶

select_points_by_row_ids(
    row_ids: set[str] | list[str] | tuple[str, ...],
) -> None

Programmatically select points matching any of the given row ids.

Parameters:

Name	Type	Description	Default
`row_ids`	`set[str] \| list[str] \| tuple[str, ...]`	Values from `unique_row_id_col` identifying rows to highlight.	required

Returns:

Type	Description
`None`	None.

Source code in src/nicewidgets/nicepool/nice_pool.py

def select_points_by_row_ids(
    self,
    row_ids: set[str] | list[str] | tuple[str, ...],
) -> None:
    """Programmatically select points matching any of the given row ids.

    Args:
        row_ids: Values from ``unique_row_id_col`` identifying rows to highlight.

    Returns:
        None.
    """
    super().select_points_by_row_ids(row_ids)

nicewidgets.nicepool.config.NicePoolConfig `dataclass` ¶

Bases: PlotPoolConfig

Configuration for the public NicePool widget.

Parameters:

Name	Type	Description	Default
`pre_filter_columns`	`Sequence[str] \| None`	Explicit categorical columns to expose as pre-filter controls. Missing columns are ignored by the widget.	`None`
`unique_row_id_col`	`str`	Column containing stable row identifiers.	`'pool_row_id'`
`db_type`	`str`	Logical dataframe type used to scope optional saved plot configuration.	`'default'`
`app_name`	`str \| None`	Optional application name for optional configuration persistence.	`None`
`config_path`	`Path \| None`	Optional explicit configuration path used when persistence is enabled.	`None`
`plot_state`	`PlotState \| None`	Optional fallback plot state when no startup config applies.	`None`
`initial_plot_config`	`dict[str, Any] \| None`	Optional inline plot config dict (layout + plot_states). Takes precedence over session persistence when set.	`None`
`on_table_row_selected`	`Callable[[str, dict[str, object]], None] \| None`	Optional row-selection callback used by the underlying table view.	`None`
`on_refresh_requested`	`Callable[[], DataFrame] \| None`	Optional callback used by the refresh button.	`None`
`show_save_button`	`bool`	Whether to render the save-config button.	`False`
`show_selection_feedback`	`bool`	Whether to render the selection feedback row.	`False`
`show_table_widget`	`bool`	Whether to render the optional DataFrame table.	`False`
`auto_pre_filter_columns`	`Sequence[str]`	Candidate columns used when `pre_filter_columns` is `None`.	`(lambda: DEFAULT_AUTO_PRE_FILTER_COLUMNS)()`
`table_font_size_px`	`int \| None`	Reserved for future table style integration.	`None`
`enable_config_persistence`	`bool`	Whether to load/save plot configuration.	`False`
`dark_mode`	`bool`	Initial Plotly layout theme for generated figures.	`False`
`enable_plot_presets`	`bool`	Whether to show and persist named plot presets.	`True`
`plot_preset_path`	`Path \| None`	Optional explicit path for named plot presets.	`None`

Source code in src/nicewidgets/nicepool/config.py

@dataclass
class NicePoolConfig(PlotPoolConfig):
    """Configuration for the public ``NicePool`` widget.

    Args:
        pre_filter_columns: Explicit categorical columns to expose as
            pre-filter controls. Missing columns are ignored by the widget.
        unique_row_id_col: Column containing stable row identifiers.
        db_type: Logical dataframe type used to scope optional saved plot
            configuration.
        app_name: Optional application name for optional configuration
            persistence.
        config_path: Optional explicit configuration path used when persistence
            is enabled.
        plot_state: Optional fallback plot state when no startup config applies.
        initial_plot_config: Optional inline plot config dict (layout + plot_states).
            Takes precedence over session persistence when set.
        on_table_row_selected: Optional row-selection callback used by the
            underlying table view.
        on_refresh_requested: Optional callback used by the refresh button.
        show_save_button: Whether to render the save-config button.
        show_selection_feedback: Whether to render the selection feedback row.
        show_table_widget: Whether to render the optional DataFrame table.
        auto_pre_filter_columns: Candidate columns used when
            ``pre_filter_columns`` is ``None``.
        table_font_size_px: Reserved for future table style integration.
        enable_config_persistence: Whether to load/save plot configuration.
        dark_mode: Initial Plotly layout theme for generated figures.
        enable_plot_presets: Whether to show and persist named plot presets.
        plot_preset_path: Optional explicit path for named plot presets.
    """

    pre_filter_columns: Sequence[str] | None = None
    unique_row_id_col: str = "pool_row_id"
    db_type: str = "default"
    app_name: str | None = None
    config_path: Path | None = None
    plot_state: PlotState | None = None
    initial_plot_config: dict[str, Any] | None = None
    on_table_row_selected: Callable[[str, dict[str, object]], None] | None = None
    on_refresh_requested: Callable[[], pd.DataFrame] | None = None
    show_save_button: bool = False
    show_selection_feedback: bool = False
    show_table_widget: bool = False
    auto_pre_filter_columns: Sequence[str] = field(default_factory=lambda: DEFAULT_AUTO_PRE_FILTER_COLUMNS)
    table_font_size_px: int | None = None
    enable_config_persistence: bool = False
    dark_mode: bool = False
    enable_plot_presets: bool = True
    plot_preset_path: Path | None = None

NicePool¶

Embed¶

Configuration¶

API¶

nicewidgets.nicepool.nice_pool.NicePool ¶

build ¶

relayout_plots ¶

set_dataframe ¶

set_dark_mode ¶

select_points_by_row_ids ¶

nicewidgets.nicepool.config.NicePoolConfig dataclass ¶

nicewidgets.nicepool.config.NicePoolConfig `dataclass` ¶
