Plotly raster viewer

This older Plotly implementation remains independently runnable and supported, but is not mounted in the combined demo. For the primary JavaScript canvas image viewer, see RasterViewerWidget.

PlotlyRasterViewer displays multiresolution 2D rasters in NiceGUI with ROI and trace overlays, contrast-friendly updates, and a built-in context menu.

Embed

import numpy as np
from nicegui import ui

from nicewidgets.raster_viewer.backend.image_model import RasterGridSpec
from nicewidgets.raster_viewer.frontend.plotly_display_options import (
    PlotlyRasterViewerDisplayOptions,
)
from nicewidgets.raster_viewer.frontend.plotly_viewer import PlotlyRasterViewer

# Tiny synthetic plane (row, col). Intensity in a simple float range.
rows, cols = 64, 128
yy, xx = np.mgrid[0:rows, 0:cols]
plane = (128.0 + 80.0 * np.sin(xx / 12.0) * np.cos(yy / 8.0)).astype(np.float32)
grid = RasterGridSpec(dx=1.0, dy=1.0, x_unit='Pixels', y_unit='Pixels')

viewer = PlotlyRasterViewer(
    display_options=PlotlyRasterViewerDisplayOptions(
        show_plotly_toolbar=False,
        show_rois=True,
        theme='light',
    ),
)
plot = viewer.build()
plot.classes('w-full h-[65vh]')

# First set_data must run after the Plotly element exists in the browser.
# Hosts typically arm a one-shot plotly_afterplot handler (see the examples demo).
async def _load(_event=None) -> None:
    await viewer.set_data(plane, grid=grid)

plot.on('plotly_afterplot', _load)

Size the returned Plotly element (or its parent) explicitly. See Layout and sizing.

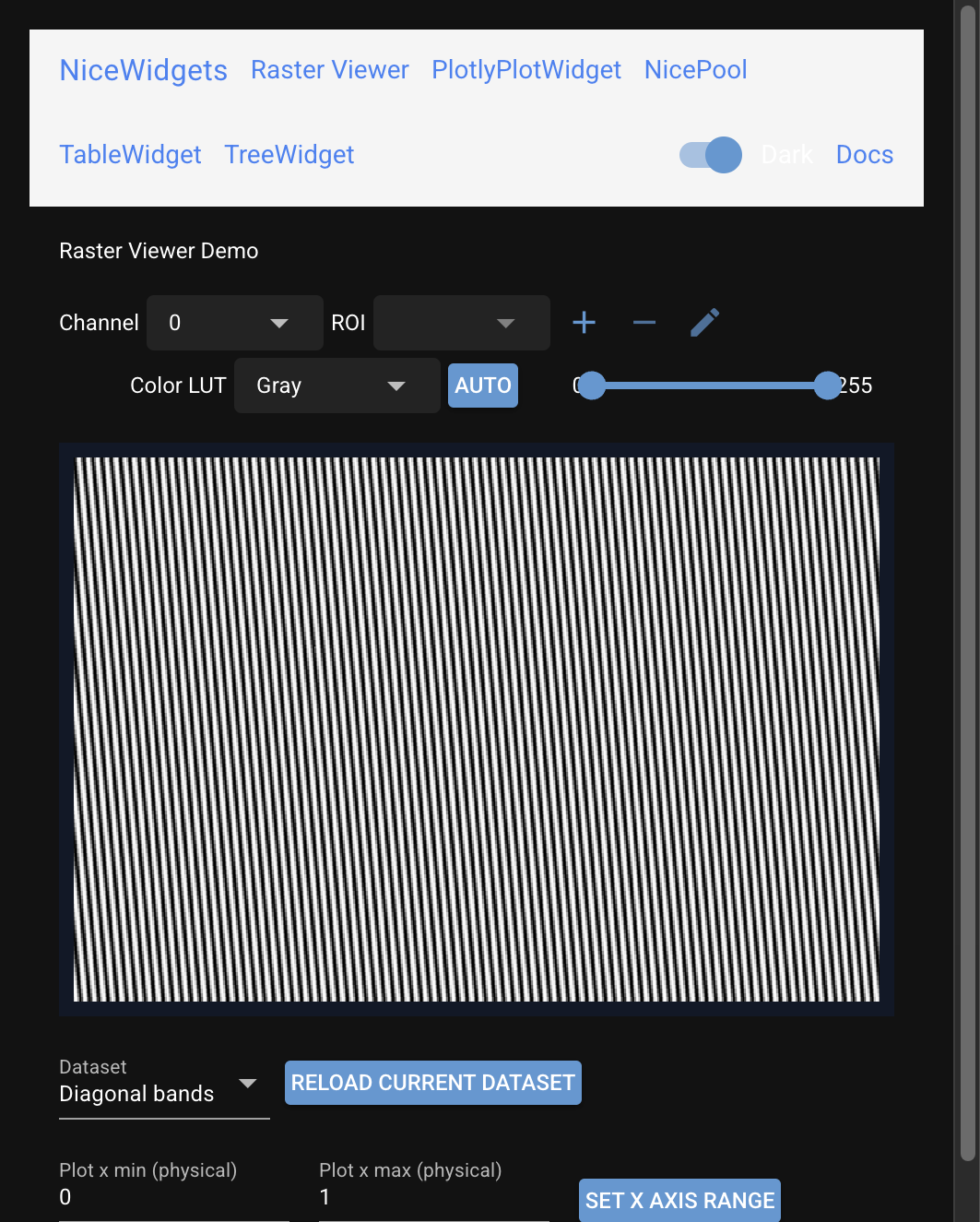

Demo: examples/raster_viewer/ (also mounted at /raster in the combined demo app).

Configuration

Initial display toggles and theme are passed with PlotlyRasterViewerDisplayOptions. Runtime toggles are also available on the viewer (toolbar, ROIs, axis labels, dark mode).

API

nicewidgets.raster_viewer.frontend.plotly_viewer.PlotlyRasterViewer

Small frontend adapter around :class:RasterViewService.

Converts Plotly/NiceGUI events to the backend service API. Row/column bounds live in the backend; plot coordinates use :class:PlotlyCoordTransform.

Typical host loop:

viewer = PlotlyRasterViewer()
plot = viewer.build()                      # once, inside a NiceGUI slot
plot.classes('w-full h-[65vh]')

await viewer.set_data(plane, grid=grid)    # per dataset (full reset)
await viewer.swap_slice_plane(...)         # per Z/T/channel scrub (keeps viewport)

await viewer.set_heatmap_style(colorscale=..., zmin=..., zmax=...)
viewer.set_rois([...]); viewer.select_roi(roi_id)
await viewer.set_x_axis_range(x_min=..., x_max=...)

The first set_data must run after the Plotly element exists in the browser; hosts typically trigger it from a one-shot plotly_afterplot event handler (see examples/raster_viewer/demo_controller.py).

All coordinates in the public API are plot physical coordinates (pixel index times dx/dy from RasterGridSpec).

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

class PlotlyRasterViewer:
    """Small frontend adapter around :class:`RasterViewService`.

    Converts Plotly/NiceGUI events to the backend service API. Row/column
    bounds live in the backend; plot coordinates use :class:`PlotlyCoordTransform`.

    Typical host loop:

    ```python
    viewer = PlotlyRasterViewer()
    plot = viewer.build()                      # once, inside a NiceGUI slot
    plot.classes('w-full h-[65vh]')

    await viewer.set_data(plane, grid=grid)    # per dataset (full reset)
    await viewer.swap_slice_plane(...)         # per Z/T/channel scrub (keeps viewport)

    await viewer.set_heatmap_style(colorscale=..., zmin=..., zmax=...)
    viewer.set_rois([...]); viewer.select_roi(roi_id)
    await viewer.set_x_axis_range(x_min=..., x_max=...)
    ```

    The first ``set_data`` must run after the Plotly element exists in the
    browser; hosts typically trigger it from a one-shot ``plotly_afterplot``
    event handler (see ``examples/raster_viewer/demo_controller.py``).

    All coordinates in the public API are plot physical coordinates
    (pixel index times ``dx``/``dy`` from ``RasterGridSpec``).
    """

    def __init__(
        self,
        *,
        display_options: PlotlyRasterViewerDisplayOptions | None = None,
        on_x_range_changed: OnPlotlyXRangeChanged | None = None,
        on_roi_bounds_preview: OnRoiBoundsPreview | None = None,
    ) -> None:
        self._plot: Element | None = None
        self._service: RasterViewService | None = None
        self._plotly_dict: dict[str, object] = {}
        self._on_x_range_changed = on_x_range_changed
        self._on_roi_bounds_preview = on_roi_bounds_preview
        # Last x-range applied via set_x_axis_range / set_data / double-click
        # reset; used to suppress echo relayouts that Plotly fires whenever
        # the x-axis range changes (whether user- or programmatic).
        self._last_applied_x_range: tuple[float | None, float | None] | None = None
        self._current_bounds = RowColBounds(
            row_min=0.0,
            row_max=1.0,
            col_min=0.0,
            col_max=1.0,
        )
        self._transform: PlotlyCoordTransform | None = None
        self._uirevision = self._new_uirevision()
        self._heatmap_colorscale: PlotlyColorscale = DEFAULT_HEATMAP_COLORSCALE
        self._contrast_zmin: float | None = None
        self._contrast_zmax: float | None = None
        # Pixel budget for full-extent overview PNGs. ``None`` keeps the
        # service's conservative coarse overview; a value lets small images
        # render at full resolution. Set per dataset via ``set_data``.
        self._overview_max_pixels: int | None = None
        self._plotly_rois = PlotlyRoiOverlayLayer()
        self._plotly_trace_overlays = PlotlyTraceOverlayLayer()
        self._display_options = display_options or PlotlyRasterViewerDisplayOptions()
        self._axis_title_texts: dict[str, str] = {'xaxis': '', 'yaxis': ''}
        self._square_plot_scaleratio = 1.0
        self._ctx_menu: ui.context_menu | None = None
        self._context_menu_builder: PlotlyRasterViewerContextMenu | None = None
        self._viewport_settle_requested = False
        self._viewport_settle_task: asyncio.Task[None] | None = None
        # Last successful browser plot size measurement. Viewport settle runs
        # from a debounced task without NiceGUI's implicit callback context.
        self._last_viewport_size_px: tuple[int, int] | None = None
        # Last axis ranges the browser displays, in Plotly coordinates.
        self._last_display_axis_ranges: tuple[tuple[float, float], tuple[float, float]] | None = None
        # Last raster payload applied to the plot (for skip-if-adequate refresh).
        self._last_applied_response: RenderResponse | None = None

    def _js_plotly_graph_div(self) -> str:
        """Resolve the Plotly graph div from NiceGUI; bail out if missing (cf. ``el.data`` guard)."""
        if self._plot is None:
            return 'return;'
        plot_id = self._plot.id
        return f"""const host = getElement({plot_id}).$el;
if (!host) return;
const plotDiv = host.querySelector('.js-plotly-plot') || host;
if (!plotDiv || !plotDiv.data) return;
"""

    def _layout_pin_xy_ranges(self, *, x_lo: float, x_hi: float, y_lo: float, y_hi: float) -> None:
        """Mirror axis state in :attr:`_plotly_dict` for the next full figure push (like ``plot_dict`` sync)."""
        layout = self._plotly_dict.setdefault('layout', {})
        xaxis = layout.setdefault('xaxis', {})
        yaxis = layout.setdefault('yaxis', {})
        xaxis['autorange'] = False
        yaxis['autorange'] = False
        xaxis['range'] = [x_lo, x_hi]
        yaxis['range'] = [y_lo, y_hi]

    @property
    def current_bounds(self) -> RowColBounds:
        """Return the most recent backend row/column bounds."""
        return self._current_bounds

    @property
    def has_data(self) -> bool:
        """Return ``True`` when a dataset has been set."""
        return self._service is not None

    @property
    def plot(self) -> Element | None:
        """Return the NiceGUI Plotly element."""
        return self._plot

    @property
    def figure(self) -> dict[str, object]:
        """Return the current figure dictionary."""
        return self._plotly_dict

    @property
    def display_options(self) -> PlotlyRasterViewerDisplayOptions:
        """Return mutable display options used by context-menu actions."""
        return self._display_options

    def get_viewport(self) -> DisplayAxisRanges | None:
        """Return the last applied Plotly axis ranges, if any.

        Returns:
            ``((x_lo, x_hi), (y_lo, y_hi))`` in plot physical coordinates,
            or ``None`` before the first data load or viewport update.
        """
        cached = self._last_display_axis_ranges
        if cached is None:
            return None
        (x_lo, x_hi), (y_lo, y_hi) = cached
        return ((float(x_lo), float(x_hi)), (float(y_lo), float(y_hi)))

    def build(self) -> Element:
        """Create the NiceGUI Plotly element."""
        self._plotly_dict = self._build_initial_figure()

        self._plot = ui.plotly(self._plotly_dict)
        self._plot.on('plotly_relayout', self._on_plotly_relayout)
        self._plot.on('plotly_doubleclick', self._on_plotly_doubleclick)
        self._ctx_menu = ui.context_menu()
        self._context_menu_builder = PlotlyRasterViewerContextMenu(get_viewer=lambda: self)
        self._plot.on('contextmenu', self._on_context_menu_event)
        if is_pywebview_desktop():
            ui.timer(0.05, self._install_pywebview_context_menu_guards, once=True)

        return self._plot

    async def set_data(
        self,
        data: np.ndarray,
        *,
        grid: RasterGridSpec,
        overview_max_pixels: int | None = None,
    ) -> RenderResponse:
        """Set a new 2D dataset and fully refresh the plot.

        Args:
            data: New full-resolution 2D array ``(rows, columns)``.
            grid: Physical spacing and axis labels (``dx``/``dy`` must be positive).
            overview_max_pixels: Optional pixel budget for full-extent overview
                PNGs (initial render and double-click reset). When ``None``, the
                service's conservative coarse overview is used. A value lets
                small images render the full extent at full resolution so the
                overview matches the zoomed-in heatmap.

        Returns:
            Initial full-image PNG response for the new dataset.
        """
        source = BackendImage(data, grid=grid)
        pyramid = ImagePyramid(source)
        return await self.set_data_from_pyramid(
            data,
            grid=grid,
            pyramid=pyramid,
            overview_max_pixels=overview_max_pixels,
        )

    async def set_data_from_pyramid(
        self,
        data: np.ndarray,
        *,
        grid: RasterGridSpec,
        pyramid: ImagePyramid,
        overview_max_pixels: int | None = None,
    ) -> RenderResponse:
        """Set a new 2D dataset using a prebuilt pyramid and fully refresh the plot.

        Use this when a caller already cached :class:`ImagePyramid` levels for
        ``data``. Physical calibration may change without rebuilding the pyramid.

        Args:
            data: Full-resolution 2D array ``(rows, columns)``.
            grid: Physical spacing and axis labels (``dx``/``dy`` must be positive).
            pyramid: Prebuilt pyramid for ``data``.
            overview_max_pixels: Optional pixel budget for full-extent overview
                PNGs (initial render and double-click reset). When ``None``, the
                service's conservative coarse overview is used.

        Returns:
            Initial full-image PNG response for the new dataset.
        """
        self._cancel_viewport_settle()
        source = BackendImage(data, grid=grid)
        self._display_options.square_plot = source.height == source.width
        self._square_plot_scaleratio = self._square_plot_scaleratio_for_source(source)
        self._service = RasterViewService(
            source=source,
            pyramid=pyramid,
        )
        self._transform = PlotlyCoordTransform(
            nrows=source.height,
            ncols=source.width,
            grid=grid,
        )
        self._axis_title_texts = {'xaxis': grid.x_unit or '', 'yaxis': grid.y_unit or ''}
        self._current_bounds = self._transform.full_row_col_bounds()
        self._uirevision = self._new_uirevision()
        self._heatmap_colorscale = DEFAULT_HEATMAP_COLORSCALE
        self._contrast_zmin = None
        self._contrast_zmax = None
        self._overview_max_pixels = overview_max_pixels
        self._plotly_trace_overlays.clear_overlays()

        response = self._service.full_image_png(
            display_style=self._display_style(),
            max_pixels=self._overview_max_pixels,
        )
        self._current_bounds = response.bounds
        # Pin echo dedup to the new data extent so the follow-up
        # ``plotly_relayout`` Plotly fires after ``_uirevision`` rotation
        # (carrying the auto-ranged data extent) is suppressed by value, not by
        # a one-shot guard. ``_is_x_range_echo`` compares with float tolerance.
        x_lo_data, x_hi_data = self._transform.row_col_to_plot_x_range(self._current_bounds)
        y_lo_data, y_hi_data = self._transform.row_col_to_plot_y_range(self._current_bounds)
        display_axis_ranges = ((x_lo_data, x_hi_data), (y_lo_data, y_hi_data))
        self._last_applied_x_range = (x_lo_data, x_hi_data)
        self._last_display_axis_ranges = display_axis_ranges
        self._last_applied_response = response
        self._plotly_dict = build_plotly_figure(
            response=response,
            uirevision=self._uirevision,
            heatmap_colorscale=self._heatmap_colorscale,
        )
        self._sync_roi_shapes_to_plotly_dict()
        self._sync_trace_overlays_to_plotly_dict()
        self._apply_display_options_to_plotly_dict()

        if self._plot is not None:
            self._plot.figure = self._plotly_dict
            self._plot.update()
        # logger.debug(
        #     'set_data_from_pyramid: mode=%s level=%s bounds=%s trace=%s',
        #     response.mode,
        #     response.level,
        #     response.bounds,
        #     self._raster_trace_type(),
        # )
        return response

    async def swap_slice_plane(
        self,
        data: np.ndarray,
        *,
        grid: RasterGridSpec,
        pyramid: ImagePyramid,
        display_axis_ranges: DisplayAxisRanges | None = None,
    ) -> RenderResponse:
        """Replace the displayed 2D plane while preserving the zoom viewport.

        Intended for Z/T slice scrubs within one file. Unlike
        :meth:`set_data_from_pyramid`, this keeps ``uirevision``, contrast,
        trace overlays, and ROI shapes. When ``display_axis_ranges`` is
        omitted, uses :meth:`get_viewport`; when that is also unavailable,
        falls back to a full-extent overview load.

        Args:
            data: Full-resolution 2D array for the new plane.
            grid: Physical spacing and axis labels.
            pyramid: Prebuilt pyramid for ``data``.
            display_axis_ranges: Optional viewport to preserve. Clipped to
                image bounds (defensive; Z/T planes share shape).

        Returns:
            Render response applied to the viewer.

        Raises:
            RuntimeError: When the viewer has not been built with data yet.
        """
        self._cancel_viewport_settle()
        source = BackendImage(data, grid=grid)
        self._display_options.square_plot = source.height == source.width
        self._square_plot_scaleratio = self._square_plot_scaleratio_for_source(source)
        self._service = RasterViewService(
            source=source,
            pyramid=pyramid,
        )
        self._transform = PlotlyCoordTransform(
            nrows=source.height,
            ncols=source.width,
            grid=grid,
        )
        self._axis_title_texts = {'xaxis': grid.x_unit or '', 'yaxis': grid.y_unit or ''}

        if display_axis_ranges is None:
            display_axis_ranges = self.get_viewport()

        if display_axis_ranges is None:
            response = self._service.full_image_png(
                display_style=self._display_style(),
                max_pixels=self._overview_max_pixels,
            )
            self._current_bounds = response.bounds
            await self.apply_response(response)
            # logger.debug(
            #     'swap_slice_plane: no cached viewport mode=%s level=%s',
            #     response.mode,
            #     response.level,
            # )
            return response

        clamped = self._clamp_display_axis_ranges(display_axis_ranges)
        full_bounds = self._transform.full_row_col_bounds()
        full_ranges: DisplayAxisRanges = (
            self._transform.row_col_to_plot_x_range(full_bounds),
            self._transform.row_col_to_plot_y_range(full_bounds),
        )

        if _display_ranges_equal(clamped, full_ranges):
            response = self._service.full_image_png(
                display_style=self._display_style(),
                max_pixels=self._overview_max_pixels,
            )
            self._current_bounds = response.bounds
            self._last_applied_x_range = clamped[0]
            self._last_display_axis_ranges = clamped
            self._last_applied_response = response
            await self.apply_response(response, display_axis_ranges=clamped)
            # logger.debug(
            #     'swap_slice_plane: full extent mode=%s level=%s',
            #     response.mode,
            #     response.level,
            # )
            return response

        self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
            clamped[0][0],
            clamped[0][1],
            clamped[1][0],
            clamped[1][1],
        )
        payload = self._viewport_payload_for_display_ranges(clamped)
        request = self.request_from_plotly(payload)
        response = self._service.render(request, display_style=self._display_style())
        self._last_applied_x_range = clamped[0]
        self._last_display_axis_ranges = clamped
        self._last_applied_response = response
        await self.apply_response(response, display_axis_ranges=clamped)
        # logger.debug(
        #     'swap_slice_plane: preserve viewport mode=%s level=%s bounds=%s',
        #     response.mode,
        #     response.level,
        #     response.bounds,
        # )
        return response

    async def clear_data(self) -> None:
        """Remove the current dataset and show an empty Plotly figure.

        Returns:
            None.
        """
        self._cancel_viewport_settle()
        self._service = None
        self._transform = None
        self._overview_max_pixels = None
        self._last_applied_x_range = None
        self._last_display_axis_ranges = None
        self._last_applied_response = None
        self._last_viewport_size_px = None
        self._heatmap_colorscale = DEFAULT_HEATMAP_COLORSCALE
        self._contrast_zmin = None
        self._contrast_zmax = None
        self._axis_title_texts = {'xaxis': '', 'yaxis': ''}
        self._plotly_trace_overlays.clear_overlays()
        self._plotly_rois.set_rois([])
        self._uirevision = self._new_uirevision()
        self._plotly_dict = self._build_initial_figure()
        if self._plot is not None:
            self._plot.figure = self._plotly_dict
            self._plot.update()

    async def apply_response(
        self,
        response: RenderResponse,
        *,
        display_axis_ranges: tuple[tuple[float, float], tuple[float, float]] | None = None,
    ) -> None:
        """Apply a backend response to the browser-side Plotly plot.

        Args:
            response: Rendered raster data for the requested backend bounds.
            display_axis_ranges: Optional ``((x0, x1), (y0, y1))`` viewport
                chosen by Plotly before a relayout-driven raster refresh. When
                provided, preserve these axis ranges while swapping the raster
                trace/pyramid data from ``response``.
        """
        if self._plot is None:
            raise RuntimeError('Viewer must be built before applying responses.')

        previous_trace_type = self._raster_trace_type()
        # logger.debug(
        #     'apply_response: mode=%s level=%s prev_trace=%s preserve_viewport=%s',
        #     response.mode,
        #     response.level,
        #     previous_trace_type,
        #     display_axis_ranges is not None,
        # )
        next_plotly_dict = build_plotly_figure(
            response=response,
            uirevision=self._uirevision,
            heatmap_colorscale=self._heatmap_colorscale,
        )

        # Relayout-driven raster refreshes happen after Plotly has already
        # applied the user's pan/zoom in the browser. When the raster trace type
        # does not change, update trace 0 only with ``Plotly.restyle`` so the
        # client-owned x/y axis ranges are left untouched. Full figure rebuilds
        # remain the path for initial load, reset, ROI/layout changes, and
        # PNG<->heatmap trace-type switches.
        if display_axis_ranges is not None and self._can_restyle_raster_trace(response, previous_trace_type):
            # logger.debug('apply_response: restyle trace 0 (preserve browser axes)')
            self._current_bounds = response.bounds
            self._replace_local_raster_trace(next_plotly_dict)
            self._sync_hover_info_to_plotly_dict()
            (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
            self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)
            self._last_display_axis_ranges = display_axis_ranges
            self._last_applied_x_range = display_axis_ranges[0]
            self._last_applied_response = response
            await self._restyle_raster_trace0_from_plotly_dict()
            return

        if display_axis_ranges is not None:
            # logger.debug('apply_response: react data preserving browser layout')
            self._current_bounds = response.bounds
            self._replace_local_raster_trace(next_plotly_dict)
            self._sync_hover_info_to_plotly_dict()
            (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
            self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)
            self._last_display_axis_ranges = display_axis_ranges
            self._last_applied_x_range = display_axis_ranges[0]
            self._last_applied_response = response
            await self._react_plotly_data_preserving_browser_layout()
            return

        self._current_bounds = response.bounds
        self._plotly_dict = next_plotly_dict
        self._sync_roi_shapes_to_plotly_dict()
        self._sync_trace_overlays_to_plotly_dict()
        self._apply_display_options_to_plotly_dict()

        if display_axis_ranges is None:
            if self._transform is not None:
                x_range = self._transform.row_col_to_plot_x_range(response.bounds)
                y_range = self._transform.row_col_to_plot_y_range(response.bounds)
                display_axis_ranges = (x_range, y_range)
        else:
            (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
            self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)

        if display_axis_ranges is not None:
            self._last_display_axis_ranges = display_axis_ranges
            self._last_applied_x_range = display_axis_ranges[0]
        self._last_applied_response = response

        self._plot.figure = self._plotly_dict
        self._plot.update()
        # logger.debug('apply_response: full figure rebuild trace=%s', self._raster_trace_type())

    def _raster_trace_type(self) -> str | None:
        """Return the current raster trace type for trace 0, if present."""
        data = self._plotly_dict.get('data', [])
        if not isinstance(data, list) or not data:
            return None
        trace0 = data[0]
        if not isinstance(trace0, dict):
            return None
        trace_type = trace0.get('type')
        return str(trace_type) if trace_type is not None else None

    def _can_restyle_raster_trace(self, response: RenderResponse, previous_trace_type: str | None) -> bool:
        """Return whether a relayout refresh can update trace 0 without layout changes."""
        if self._plot is None:
            return False
        expected_type = 'image' if response.mode == 'image_png' else 'heatmap' if response.mode == 'heatmap_z' else None
        return expected_type is not None and previous_trace_type == expected_type

    def _replace_local_raster_trace(self, next_plotly_dict: dict[str, object]) -> None:
        """Replace only local trace 0 with the newly rendered raster trace."""
        next_data = next_plotly_dict.get('data', [])
        if not isinstance(next_data, list) or not next_data or not isinstance(next_data[0], dict):
            raise RuntimeError('Rendered Plotly figure did not contain a raster trace.')

        data = self._plotly_dict.setdefault('data', [])
        if not isinstance(data, list):
            data = []
            self._plotly_dict['data'] = data
        if data:
            data[0] = dict(next_data[0])
        else:
            data.append(dict(next_data[0]))
        self._set_trace_overlay_visibility(data)

    async def _restyle_raster_trace0_from_plotly_dict(self) -> None:
        """Push only trace-0 raster data/style with ``Plotly.restyle``.

        This is used after a user relayout. Plotly already owns the visible
        viewport at that point, so this method intentionally sends no layout
        keys and does not call ``self._plot.update()``.
        """
        if self._plot is None:
            return
        data = self._plotly_dict.get('data', [])
        if not isinstance(data, list) or not data or not isinstance(data[0], dict):
            return
        trace0 = data[0]
        restyle = {key: [value] for key, value in trace0.items() if key != 'type'}
        js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {json.dumps(restyle)}, [0]);
"""
        try:
            await self._plot.client.run_javascript(js, timeout=10.0)
        except TimeoutError:
            logger.warning('Timed out while restyling Plotly raster trace.')
        except RuntimeError:
            logger.warning('Could not restyle Plotly raster trace; browser client unavailable.')
        except Exception:
            logger.exception('Failed to restyle Plotly raster trace.')

    async def _react_plotly_data_preserving_browser_layout(self) -> None:
        """Replace Plotly trace data while preserving the browser-owned layout."""
        if self._plot is None:
            return
        data = self._plotly_dict.get('data', [])
        if not isinstance(data, list):
            return
        config = self._plotly_dict.get('config', {})
        if not isinstance(config, dict):
            config = dict(RASTER_VIEWER_PLOTLY_CONFIG)
        js = f"""
{self._js_plotly_graph_div()}
Plotly.react(plotDiv, {json.dumps(data)}, plotDiv.layout, {json.dumps(config)});
"""
        try:
            await self._plot.client.run_javascript(js, timeout=10.0)
        except TimeoutError:
            logger.warning('Timed out while applying Plotly.react raster update.')
        except RuntimeError:
            logger.warning('Could not apply Plotly.react raster update; browser client unavailable.')
        except Exception:
            logger.exception('Failed to apply Plotly.react raster update.')

    def set_rois(self, rois: Sequence[RectRoiOverlay]) -> None:
        """Replace all rectangular ROI overlays without pushing raster data.

        Args:
            rois: ROI overlays in Plotly physical coordinates.

        Returns:
            None.
        """
        self._plotly_rois.set_rois(rois)
        self._sync_roi_shapes_to_plotly_dict()
        self._relayout_shapes()

    def select_roi(self, roi_id: int | None) -> None:
        """Select one ROI overlay and update rectangle styling only.

        Args:
            roi_id: ROI identifier to select, or None to clear selection.

        Returns:
            None.
        """
        self._plotly_rois.select_roi(roi_id)
        self._sync_roi_shapes_to_plotly_dict()
        self._relayout_shapes()

    def add_roi(self, roi: RectRoiOverlay) -> None:
        """Add or replace one ROI overlay without pushing raster data.

        Args:
            roi: ROI overlay in Plotly physical coordinates.

        Returns:
            None.
        """
        self._plotly_rois.add_roi(roi)
        self._sync_roi_shapes_to_plotly_dict()
        self._relayout_shapes()

    def delete_roi(self, roi_id: int) -> None:
        """Delete one ROI overlay without pushing raster data.

        Args:
            roi_id: ROI identifier to remove.

        Returns:
            None.
        """
        self._plotly_rois.delete_roi(roi_id)
        self._sync_roi_shapes_to_plotly_dict()
        self._relayout_shapes()

    def set_roi_editing(self, enabled: bool, roi_id: int | None = None) -> None:
        """Enable or disable direct editing for one ROI shape.

        Args:
            enabled: Whether ROI shape editing should be active.
            roi_id: ROI id to make editable when ``enabled`` is True.

        Returns:
            None.
        """
        self._plotly_rois.set_roi_editing(roi_id if enabled else None)
        self._sync_plotly_config_to_plotly_dict()
        self._sync_roi_shapes_to_plotly_dict()
        self._react_plotly_config()
        self._relayout_shapes()

    def set_trace_overlays(self, overlays: Sequence[PlotlyTraceOverlay]) -> None:
        """Replace all trace overlays without pushing raster data.

        Args:
            overlays: Trace overlays in Plotly physical coordinates.

        Returns:
            None.
        """
        self._plotly_trace_overlays.set_overlays(overlays)
        self._sync_trace_overlays_to_plotly_dict()
        self._redraw_trace_overlays()

    def add_trace_overlay(self, overlay: PlotlyTraceOverlay) -> None:
        """Add or replace one trace overlay without pushing raster data.

        Args:
            overlay: Trace overlay in Plotly physical coordinates.

        Returns:
            None.
        """
        self._plotly_trace_overlays.add_overlay(overlay)
        self._sync_trace_overlays_to_plotly_dict()
        self._redraw_trace_overlays()

    def delete_trace_overlay(self, trace_id: str) -> None:
        """Delete one trace overlay without pushing raster data.

        Args:
            trace_id: Trace overlay identifier to remove.

        Returns:
            None.
        """
        self._plotly_trace_overlays.delete_overlay(trace_id)
        self._sync_trace_overlays_to_plotly_dict()
        self._redraw_trace_overlays()

    def clear_trace_overlays(self) -> None:
        """Delete all trace overlays without pushing raster data.

        Returns:
            None.
        """
        self._plotly_trace_overlays.clear_overlays()
        self._sync_trace_overlays_to_plotly_dict()
        self._redraw_trace_overlays()

    def _sync_trace_overlays_to_plotly_dict(self) -> None:
        """Synchronize current trace overlay state into ``data``.

        Returns:
            None.
        """
        data = self._plotly_dict.setdefault('data', [])
        if not isinstance(data, list):
            data = []
        self._plotly_dict['data'] = self._plotly_trace_overlays.merge_traces(data)
        self._set_trace_overlay_visibility(self._plotly_dict['data'])

    def _redraw_trace_overlays(self) -> None:
        """Replace managed browser-side trace overlays without pushing raster data.

        Returns:
            None.
        """
        if self._plot is None:
            return
        overlay_traces = self._plotly_trace_overlays.to_traces()
        self._set_trace_overlay_visibility(overlay_traces)
        js = f"""
{self._js_plotly_graph_div()}
const baseTraceCount = 1;
const deleteCount = Math.max(0, plotDiv.data.length - baseTraceCount);
const deleteIndices = Array.from(
  {{length: deleteCount}},
  (_, i) => baseTraceCount + i,
);
const overlayTraces = {json.dumps(overlay_traces)};
let overlayPromise = Promise.resolve();
if (deleteIndices.length > 0) {{
  overlayPromise = Plotly.deleteTraces(plotDiv, deleteIndices);
}}
return overlayPromise.then(() => {{
  if (overlayTraces.length > 0) {{
    return Plotly.addTraces(plotDiv, overlayTraces);
  }}
  return null;
}});
"""
        try:
            self._plot.client.run_javascript(js, timeout=10.0)
        except TimeoutError:
            logger.warning('Timed out while refreshing Plotly trace overlays.')
        except Exception:
            logger.exception('Failed to refresh Plotly trace overlays.')

    def _sync_roi_shapes_to_plotly_dict(self) -> None:
        """Synchronize current ROI overlay state into ``layout.shapes``.

        Returns:
            None.
        """
        layout = self._plotly_dict.setdefault('layout', {})
        existing_shapes = layout.get('shapes', [])
        if not isinstance(existing_shapes, list):
            existing_shapes = []
        layout['shapes'] = self._plotly_rois.merge_shapes(existing_shapes)
        self._set_roi_shape_visibility(layout['shapes'])
        self._set_roi_label_visibility(layout['shapes'])

    def _relayout_shapes(self) -> None:
        """Push only ``layout.shapes`` to the browser with ``Plotly.relayout``.

        Returns:
            None.
        """
        if self._plot is None:
            return
        layout = self._plotly_dict.setdefault('layout', {})
        shapes = layout.get('shapes', [])
        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {{
  shapes: {json.dumps(shapes)}
}});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    def set_roi_overlays_visible(self, visible: bool) -> None:
        """Set ROI overlay visibility without changing ROI state.

        Args:
            visible: Whether ROI shapes should be visible.

        Returns:
            None.
        """
        self._display_options.show_rois = bool(visible)
        self._sync_roi_shapes_to_plotly_dict()
        self._relayout_shapes()

    def set_roi_labels_visible(self, visible: bool) -> None:
        """Set ROI overlay label visibility without changing ROI state.

        Args:
            visible: Whether ROI shape labels should be visible.

        Returns:
            None.
        """
        self._display_options.show_roi_labels = bool(visible)
        self._sync_roi_shapes_to_plotly_dict()
        self._relayout_shapes()

    def set_trace_overlays_visible(self, visible: bool) -> None:
        """Set managed trace overlay visibility without changing overlay state.

        Args:
            visible: Whether managed trace overlays should be visible.

        Returns:
            None.
        """
        self._display_options.show_trace_overlays = bool(visible)
        self._sync_trace_overlays_to_plotly_dict()
        self._restyle_trace_overlay_visibility()

    def set_x_axis_labels_visible(self, visible: bool) -> None:
        """Set x-axis decoration visibility without rebuilding the plot.

        Args:
            visible: Whether x-axis decorations should be visible.

        Returns:
            None.
        """
        self._display_options.show_x_axis_labels = bool(visible)
        self._sync_axis_labels_to_plotly_dict()
        self._sync_margins_to_plotly_dict()
        self._sync_axis_stabilization_to_plotly_dict()
        self._relayout_axis_labels()

    def set_y_axis_labels_visible(self, visible: bool) -> None:
        """Set y-axis decoration visibility without rebuilding the plot.

        Args:
            visible: Whether y-axis decorations should be visible.

        Returns:
            None.
        """
        self._display_options.show_y_axis_labels = bool(visible)
        self._sync_axis_labels_to_plotly_dict()
        self._sync_margins_to_plotly_dict()
        self._sync_axis_stabilization_to_plotly_dict()
        self._relayout_axis_labels()

    def set_square_plot(self, enabled: bool) -> None:
        """Set whether Plotly constrains the raster plot to a square plot area.

        Args:
            enabled: Whether the raster plot should be square inside its
                enclosing Plotly container.

        Returns:
            None.
        """
        self._display_options.square_plot = bool(enabled)
        self._sync_square_plot_to_plotly_dict()
        self._relayout_square_plot()

    def set_theme(self, theme: PlotlyThemeName) -> None:
        """Set the Plotly raster viewer color theme.

        Args:
            theme: Theme name, either ``'light'`` or ``'dark'``.

        Returns:
            None.
        """
        self._display_options.theme = normalize_plotly_theme(theme)
        self._sync_theme_to_plotly_dict()
        self._relayout_theme()

    def set_dark_mode(self, enabled: bool) -> None:
        """Set the Plotly raster viewer theme from a dark-mode flag.

        Args:
            enabled: Whether dark mode is enabled.

        Returns:
            None.
        """
        self.set_theme('dark' if enabled else 'light')

    def set_plotly_toolbar_visible(self, visible: bool) -> None:
        """Set Plotly modebar visibility.

        Args:
            visible: Whether Plotly's modebar should be visible.

        Returns:
            None.
        """
        self._display_options.show_plotly_toolbar = bool(visible)
        self._sync_plotly_config_to_plotly_dict()
        self._react_plotly_config()

    def set_hover_info_visible(self, visible: bool) -> None:
        """Set Plotly hover-info visibility for the raster trace.

        When disabled (``visible=False``, the default), ``hoverinfo='skip'`` is
        applied to the raster trace so Plotly does not display tooltips and
        does not emit hover events.

        Args:
            visible: Whether hover info should be visible.

        Returns:
            None.
        """
        self._display_options.show_hover_info = bool(visible)
        self._sync_hover_info_to_plotly_dict()
        self._restyle_hover_info()

    def _restyle_hover_info(self) -> None:
        """Push ``hoverinfo`` change to the browser via ``Plotly.restyle``."""
        if self._plot is None:
            return
        value = 'all' if self._display_options.show_hover_info else 'skip'
        js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {{
  hoverinfo: [{json.dumps(value)}]
}}, [0]);
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    async def copy_plot_to_clipboard(self) -> None:
        """Copy the current Plotly plot image to the native clipboard when available.

        Browser/cloud mode currently reports a warning because robust image
        clipboard support is browser-permission dependent. Native mode uses the
        optional ``pyperclipimg`` stack.
        """
        if self._plot is None:
            ui.notify('No plot to copy.', type='warning')
            return

        try:
            if is_pywebview_desktop():
                png_bytes = await get_plotly_png_bytes(self._plot)
                copy_png_bytes_to_native_clipboard(png_bytes)
            else:
                await copy_plotly_png_to_browser_clipboard(self._plot)
            ui.notify('Plot copied to clipboard.', type='positive')
        except Exception as exc:
            logger.exception('Failed to copy Plotly plot to clipboard.')
            ui.notify(f'Copy failed: {exc}', type='negative')

    def _on_context_menu_event(self, _event) -> None:
        """Rebuild and open the Plotly raster viewer context menu."""
        if self._ctx_menu is None or self._context_menu_builder is None:
            return
        with self._ctx_menu.clear():
            self._context_menu_builder.build()
        self._ctx_menu.open()

    def _install_pywebview_context_menu_guards(self) -> None:
        """Install desktop-only capture listeners so secondary taps open the menu.

        Browser Chrome already delivers ``contextmenu`` on the Plotly canvas.
        A pywebview desktop shell (WKWebView) can hand secondary taps to Plotly drag
        handlers first; guards are skipped outside a pywebview shell.
        """
        if self._plot is None or not is_pywebview_desktop():
            return
        js = pywebview_plot_context_menu_guard_js(plot_id=self._plot.id)
        try:
            self._plot.client.run_javascript(js, timeout=2.0)
        except RuntimeError:
            logger.debug('Could not install pywebview context-menu guards; client unavailable.')

    def _apply_display_options_to_plotly_dict(self) -> None:
        """Synchronize all display options into the local Plotly dictionary."""
        self._sync_plotly_config_to_plotly_dict()
        self._sync_theme_to_plotly_dict()
        self._sync_axis_labels_to_plotly_dict()
        self._sync_margins_to_plotly_dict()
        self._sync_axis_stabilization_to_plotly_dict()
        self._sync_square_plot_to_plotly_dict()
        self._sync_hover_info_to_plotly_dict()
        layout = self._plotly_dict.setdefault('layout', {})
        shapes = layout.get('shapes', [])
        if isinstance(shapes, list):
            self._set_roi_shape_visibility(shapes)
            self._set_roi_label_visibility(shapes)
        data = self._plotly_dict.get('data', [])
        if isinstance(data, list):
            self._set_trace_overlay_visibility(data)

    def _sync_hover_info_to_plotly_dict(self) -> None:
        """Synchronize hover-info visibility into the raster trace dict.

        Uses ``hoverinfo='skip'`` when disabled (suppresses Plotly's hover
        events entirely) so the browser does not emit hover traffic when the
        user toggles this off.
        """
        data = self._plotly_dict.get('data', [])
        if not isinstance(data, list) or not data:
            return
        trace0 = data[0]
        if not isinstance(trace0, dict):
            return
        trace0['hoverinfo'] = 'all' if self._display_options.show_hover_info else 'skip'

    def _sync_plotly_config_to_plotly_dict(self) -> None:
        """Synchronize Plotly config options into the local figure dict."""
        config = dict(RASTER_VIEWER_PLOTLY_CONFIG)
        config['displayModeBar'] = bool(self._display_options.show_plotly_toolbar)
        config['edits'] = {
            'shapePosition': self._plotly_rois.editing_roi_id is not None,
            'titleText': False,
            'axisTitleText': False,
            'legendText': False,
            'legendPosition': False,
        }
        self._plotly_dict['config'] = config

    def _any_axis_labels_visible(self) -> bool:
        """Return whether any axis decorations are visible for margin layout."""
        return any_axis_labels_visible(
            show_x_axis_labels=self._display_options.show_x_axis_labels,
            show_y_axis_labels=self._display_options.show_y_axis_labels,
        )

    def _sync_axis_labels_to_plotly_dict(self) -> None:
        """Synchronize axis decoration visibility into the local figure dict."""
        layout = self._plotly_dict.setdefault('layout', {})
        axis_specs = (
            ('xaxis', self._display_options.show_x_axis_labels),
            ('yaxis', self._display_options.show_y_axis_labels),
        )
        for axis_name, visible in axis_specs:
            axis = layout.setdefault(axis_name, {})
            if not isinstance(axis, dict):
                axis = {}
                layout[axis_name] = axis
            apply_axis_decorations(
                axis,
                label_text=self._axis_title_texts.get(axis_name, ''),
                visible=bool(visible),
            )

    def _sync_margins_to_plotly_dict(self) -> None:
        """Synchronize layout margins with axis-label visibility."""
        layout = self._plotly_dict.setdefault('layout', {})
        if not isinstance(layout, dict):
            layout = {}
            self._plotly_dict['layout'] = layout
        layout['margin'] = resolve_plot_layout_margins(
            show_axis_labels=self._any_axis_labels_visible(),
            show_legend=False,
            layout_margins_profile=self._display_options.layout_margins_profile,
        )

    def _sync_axis_stabilization_to_plotly_dict(self) -> None:
        """Apply stack-profile axis stabilization into the local figure dict."""
        profile = self._display_options.layout_margins_profile
        if profile is None:
            return
        layout = self._plotly_dict.setdefault('layout', {})
        if isinstance(layout, dict):
            profile.apply_axis_stabilization(layout)

    def _sync_theme_to_plotly_dict(self) -> None:
        """Synchronize the selected light/dark theme into the local figure dict."""
        layout = self._plotly_dict.setdefault('layout', {})
        if not isinstance(layout, dict):
            layout = {}
            self._plotly_dict['layout'] = layout
        apply_plotly_theme_to_layout(layout, self._display_options.theme)

    def _sync_square_plot_to_plotly_dict(self) -> None:
        """Synchronize square-plot layout constraints into the local figure dict."""
        layout = self._plotly_dict.setdefault('layout', {})
        xaxis = layout.setdefault('xaxis', {})
        yaxis = layout.setdefault('yaxis', {})
        if not isinstance(xaxis, dict):
            xaxis = {}
            layout['xaxis'] = xaxis
        if not isinstance(yaxis, dict):
            yaxis = {}
            layout['yaxis'] = yaxis

        if self._display_options.square_plot:
            xaxis['constrain'] = 'domain'
            yaxis['constrain'] = 'domain'
            yaxis['scaleanchor'] = 'x'
            yaxis['scaleratio'] = self._square_plot_scaleratio
            return

        xaxis.pop('constrain', None)
        yaxis.pop('constrain', None)
        yaxis['scaleanchor'] = False
        yaxis.pop('scaleratio', None)

    def _set_roi_shape_visibility(self, shapes: list[object]) -> None:
        """Apply global ROI visibility to managed ROI shapes.

        Args:
            shapes: Mutable Plotly layout shape list.

        Returns:
            None.
        """
        for shape in shapes:
            if PlotlyRoiOverlayLayer.is_roi_shape(shape):
                shape['visible'] = bool(self._display_options.show_rois)

    def _set_roi_label_visibility(self, shapes: list[object]) -> None:
        """Blank managed ROI shape labels when label display is disabled.

        The ROI overlay layer always emits the full label text. When
        ``show_roi_labels`` is disabled, the label text is cleared so Plotly
        renders the rectangle without its annotation. When enabled, the freshly
        merged shapes already carry their label text, so this is a no-op.

        Args:
            shapes: Mutable Plotly layout shape list.

        Returns:
            None.
        """
        if self._display_options.show_roi_labels:
            return
        for shape in shapes:
            if not PlotlyRoiOverlayLayer.is_roi_shape(shape) or not isinstance(shape, dict):
                continue
            label = shape.get('label')
            if isinstance(label, dict):
                label['text'] = ''

    def _set_trace_overlay_visibility(self, traces: list[object]) -> None:
        """Apply global trace-overlay visibility to managed overlay traces.

        Args:
            traces: Mutable Plotly data list.

        Returns:
            None.
        """
        for trace in traces:
            if PlotlyTraceOverlayLayer.is_trace_overlay(trace):
                trace['visible'] = bool(
                    trace.get('visible', True) and self._display_options.show_trace_overlays
                )

    def _relayout_axis_labels(self) -> None:
        """Push x/y axis decoration visibility to the browser."""
        if self._plot is None:
            return
        layout = self._plotly_dict.setdefault('layout', {})
        relayout: dict[str, object] = {}
        for axis_name in ('xaxis', 'yaxis'):
            axis = layout.get(axis_name, {})
            if not isinstance(axis, dict):
                continue
            title = axis.get('title', {})
            title_text = title.get('text', '') if isinstance(title, dict) else ''
            relayout[f'{axis_name}.title.text'] = title_text
            relayout[f'{axis_name}.title.font.size'] = PLOTLY_AXIS_LABEL_FONT_SIZE
            relayout[f'{axis_name}.tickfont.size'] = PLOTLY_AXIS_LABEL_FONT_SIZE
            relayout[f'{axis_name}.showticklabels'] = axis.get('showticklabels', True)
            relayout[f'{axis_name}.ticks'] = axis.get('ticks', '')
            relayout[f'{axis_name}.showline'] = axis.get('showline', False)
            relayout[f'{axis_name}.zeroline'] = axis.get('zeroline', False)
            relayout[f'{axis_name}.showgrid'] = axis.get('showgrid', False)
            if 'automargin' in axis:
                relayout[f'{axis_name}.automargin'] = axis.get('automargin')
        margin = layout.get('margin')
        if isinstance(margin, dict):
            relayout['margin'] = margin
        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {json.dumps(relayout)});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    def _relayout_theme(self) -> None:
        """Push light/dark theme layout properties to the browser."""
        if self._plot is None:
            return
        layout = self._plotly_dict.setdefault('layout', {})
        relayout: dict[str, object] = {
            'paper_bgcolor': layout.get('paper_bgcolor', 'white'),
            'plot_bgcolor': layout.get('plot_bgcolor', 'white'),
        }
        font = layout.get('font', {})
        if isinstance(font, dict):
            relayout['font.color'] = font.get('color', '#111827')
        for axis_name in ('xaxis', 'yaxis'):
            axis = layout.get(axis_name, {})
            if not isinstance(axis, dict):
                continue
            relayout[f'{axis_name}.color'] = axis.get('color')
            relayout[f'{axis_name}.linecolor'] = axis.get('linecolor')
            relayout[f'{axis_name}.tickcolor'] = axis.get('tickcolor')
            relayout[f'{axis_name}.gridcolor'] = axis.get('gridcolor')
            relayout[f'{axis_name}.zerolinecolor'] = axis.get('zerolinecolor')
        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {json.dumps(relayout)});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    def _relayout_square_plot(self) -> None:
        """Push square-plot layout constraints to the browser."""
        if self._plot is None:
            return
        relayout: dict[str, object] = {}
        if self._display_options.square_plot:
            relayout = {
                'xaxis.constrain': 'domain',
                'yaxis.constrain': 'domain',
                'yaxis.scaleanchor': 'x',
                'yaxis.scaleratio': self._square_plot_scaleratio,
            }
        else:
            relayout = {
                'xaxis.constrain': None,
                'yaxis.constrain': None,
                'yaxis.scaleanchor': False,
                'yaxis.scaleratio': None,
            }
        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {json.dumps(relayout)});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    def _restyle_trace_overlay_visibility(self) -> None:
        """Push only managed trace-overlay ``visible`` values to the browser."""
        if self._plot is None:
            return
        data = self._plotly_dict.get('data', [])
        visibility_by_trace_id: dict[str, bool] = {}
        if isinstance(data, list):
            for trace in data:
                trace_id = PlotlyTraceOverlayLayer.trace_id_from_trace(trace)
                if trace_id is not None and isinstance(trace, dict):
                    visibility_by_trace_id[str(trace_id)] = bool(trace.get('visible', True))

        js = f"""
{self._js_plotly_graph_div()}
const visibilityByTraceId = {json.dumps(visibility_by_trace_id)};
const indices = [];
const visibleValues = [];
plotDiv.data.forEach((trace, index) => {{
  const traceId = trace?.meta?.trace_id;
  if (trace?.meta?.nicewidgets_overlay_type === 'trace' && traceId in visibilityByTraceId) {{
    indices.push(index);
    visibleValues.push(visibilityByTraceId[traceId]);
  }}
}});
if (indices.length > 0) {{
  Plotly.restyle(plotDiv, {{visible: visibleValues}}, indices);
}}
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    def _react_plotly_config(self) -> None:
        """Push Plotly config changes without creating a new NiceGUI plot."""
        if self._plot is None:
            return
        config = self._plotly_dict.get('config', {})
        js = f"""
{self._js_plotly_graph_div()}
Plotly.react(plotDiv, plotDiv.data, plotDiv.layout, {json.dumps(config)});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    def request_from_plotly(self, payload: PlotlyViewportPayload):
        """Build a backend request from a browser relayout payload (merged axes)."""
        if self._service is None:
            raise RuntimeError('No data set. Call set_data() before requesting renders.')
        if self._transform is None:
            raise RuntimeError('Coordinate transform missing; call set_data() first.')
        merged = merge_partial_relayout(
            payload.relayout,
            self._transform,
            self._current_bounds,
        )
        merged_payload = PlotlyViewportPayload(
            relayout=merged,
            width_px=payload.width_px,
            height_px=payload.height_px,
        )
        return parse_relayout_payload(merged_payload, self._transform, self._current_bounds)

    def _clamp_display_axis_ranges(
        self,
        display_axis_ranges: DisplayAxisRanges,
    ) -> DisplayAxisRanges:
        """Clip plot axis ranges to the current source array shape."""
        if self._transform is None:
            return display_axis_ranges
        (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
        bounds = self._transform.plot_xy_ranges_to_row_col(x_lo, x_hi, y_lo, y_hi)
        return (
            self._transform.row_col_to_plot_x_range(bounds),
            self._transform.row_col_to_plot_y_range(bounds),
        )

    def _viewport_payload_for_display_ranges(
        self,
        display_axis_ranges: DisplayAxisRanges,
    ) -> PlotlyViewportPayload:
        """Build a viewport payload from cached Plotly axis ranges."""
        if self._last_viewport_size_px is not None:
            width_px, height_px = self._last_viewport_size_px
        else:
            width_px, height_px = 800, 600
        relayout = self._relayout_from_display_axis_ranges(display_axis_ranges)
        return PlotlyViewportPayload(
            relayout=relayout,
            width_px=width_px,
            height_px=height_px,
        )

    async def rerender_from_plotly(
        self,
        payload: PlotlyViewportPayload,
        *,
        display_axis_ranges: tuple[tuple[float, float], tuple[float, float]] | None = None,
    ) -> RenderResponse:
        """Render and apply an updated view from a relayout payload.

        Args:
            payload: Browser viewport payload used to request raster data.
            display_axis_ranges: Optional Plotly viewport to preserve while
                applying the new raster data. Relayout-driven renders pass this
                so a PNG/heatmap or pyramid-level swap does not reset the
                user-visible zoom that Plotly already applied.
        """
        if self._service is None:
            raise RuntimeError('No data set. Call set_data() before requesting renders.')
        request = self.request_from_plotly(payload)
        response = self._service.render(request, display_style=self._display_style())
        await self.apply_response(response, display_axis_ranges=display_axis_ranges)
        return response

    async def set_axis_ranges(
        self,
        *,
        x_min: float,
        x_max: float,
        y_min: float,
        y_max: float,
    ) -> None:
        """Set visible axis ranges in **plot physical** coordinates (Plotly space)."""
        if self._plot is None or self._transform is None:
            raise RuntimeError('Viewer must be built and data set before setting axis ranges.')

        self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
            x_min,
            x_max,
            y_min,
            y_max,
        )

        x_lo = float(min(x_min, x_max))
        x_hi = float(max(x_min, x_max))
        y_lo = float(min(y_min, y_max))
        y_hi = float(max(y_min, y_max))
        self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)
        display_axis_ranges = ((x_lo, x_hi), (y_lo, y_hi))
        self._last_display_axis_ranges = display_axis_ranges

        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {{
  'xaxis.range': [{json.dumps(x_lo)}, {json.dumps(x_hi)}],
  'xaxis.autorange': false,
  'yaxis.range': [{json.dumps(y_lo)}, {json.dumps(y_hi)}],
  'yaxis.autorange': false
}});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    async def set_x_axis_range(self, *, x_min: float, x_max: float) -> None:
        """Set visible **x** (plot row / physical-x) axis range without touching y.

        Args:
            x_min: Minimum plot x value.
            x_max: Maximum plot x value.

        Records the applied value so debounced x-range emission does not
        re-fire ``on_x_range_changed`` for an echo of the same range.

        The browser y-axis is left untouched so wheel-zoomed y extents are not
        reset by external x-range sync from other views.
        """
        if self._plot is None or self._transform is None:
            raise RuntimeError('Viewer must be built and data set before setting axis ranges.')

        x_lo = float(min(x_min, x_max))
        x_hi = float(max(x_min, x_max))
        new_x_range = (x_lo, x_hi)
        if self._last_display_axis_ranges is not None and _x_range_equal(
            new_x_range,
            self._last_display_axis_ranges[0],
        ):
            self._last_applied_x_range = new_x_range
            return

        if self._last_display_axis_ranges is not None:
            y_lo, y_hi = self._last_display_axis_ranges[1]
        else:
            y_lo, y_hi = self._transform.row_col_to_plot_y_range(self._current_bounds)

        self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
            x_lo,
            x_hi,
            y_lo,
            y_hi,
        )

        layout = self._plotly_dict.setdefault('layout', {})
        xaxis = layout.setdefault('xaxis', {})
        xaxis['autorange'] = False
        xaxis['range'] = [x_lo, x_hi]

        self._last_applied_x_range = new_x_range
        self._last_display_axis_ranges = ((x_lo, x_hi), (y_lo, y_hi))

        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {{
  'xaxis.range': [{json.dumps(x_lo)}, {json.dumps(x_hi)}],
  'xaxis.autorange': false
}});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

    async def reset_x_axis_to_full_extent(self) -> None:
        """Reset visible **x** axis to the full data extent without changing y.

        Used when linked 1D plots emit an auto x-range ``(None, None)`` and the
        raster viewer must zoom out horizontally while preserving the current
        y viewport. Schedules a debounced raster refresh for the new x window.
        """
        if self._plot is None or self._transform is None:
            raise RuntimeError('Viewer must be built and data set before resetting axis ranges.')

        full_bounds = self._transform.full_row_col_bounds()
        x_lo, x_hi = self._transform.row_col_to_plot_x_range(full_bounds)
        new_x_range = (x_lo, x_hi)
        if self._last_display_axis_ranges is not None and _x_range_equal(
            new_x_range,
            self._last_display_axis_ranges[0],
        ):
            self._last_applied_x_range = new_x_range
            return

        if self._last_display_axis_ranges is not None:
            y_lo, y_hi = self._last_display_axis_ranges[1]
        else:
            y_lo, y_hi = self._transform.row_col_to_plot_y_range(self._current_bounds)

        self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
            x_lo,
            x_hi,
            y_lo,
            y_hi,
        )

        layout = self._plotly_dict.setdefault('layout', {})
        xaxis = layout.setdefault('xaxis', {})
        xaxis['autorange'] = False
        xaxis['range'] = [x_lo, x_hi]

        self._last_applied_x_range = new_x_range
        self._last_display_axis_ranges = ((x_lo, x_hi), (y_lo, y_hi))

        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {{
  'xaxis.range': [{json.dumps(x_lo)}, {json.dumps(x_hi)}],
  'xaxis.autorange': false
}});
"""
        self._plot.client.run_javascript(js, timeout=2.0)
        self._schedule_viewport_settle()

    def reset_x_axis_range(self) -> None:
        """Record that the next user x-range should be treated as auto.

        Prefer :meth:`reset_x_axis_to_full_extent` when the Plotly view must
        actually zoom out to the full x extent while preserving y.
        """
        self._last_applied_x_range = (None, None)

    async def set_heatmap_contrast(self, *, zmin: float, zmax: float) -> None:
        """Pin intensity window for heatmap (``Plotly.restyle``) and PNG overview (re-encode)."""
        z_lo, z_hi = (float(min(zmin, zmax)), float(max(zmin, zmax)))
        self._contrast_zmin = z_lo
        self._contrast_zmax = z_hi

        if self._heatmap_trace_active():
            data = self._plotly_dict.get('data', [])
            skip_restyle = False
            if isinstance(data, list) and data and isinstance(data[0], dict):
                trace0 = data[0]
                if trace0.get('zmin') == z_lo and trace0.get('zmax') == z_hi:
                    skip_restyle = True
                else:
                    trace0['zmin'] = z_lo
                    trace0['zmax'] = z_hi
            if not skip_restyle:
                js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {{
  zmin: [{json.dumps(z_lo)}],
  zmax: [{json.dumps(z_hi)}]
}}, [0]);
"""
                self._plot.client.run_javascript(js, timeout=2.0)
        elif self._image_trace_active():
            await self._refresh_full_png()
        else:
            raise RuntimeError('No raster trace to style. Load data and show a heatmap or overview image first.')

    async def set_heatmap_colorscale(self, colorscale: PlotlyColorscale) -> None:
        """Set Plotly colorscale for heatmap and PNG overview LUT encoding.

        Accepts either a built-in name (``'Greys'``, ``'Viridis'``, ...) or a
        list of ``[stop, color]`` pairs for custom 2-stop scales such as the
        contrast widget's ``inverted_grays``.

        Args:
            colorscale: Plotly colorscale name or stop list.
        """
        self._heatmap_colorscale = colorscale

        if self._heatmap_trace_active():
            data = self._plotly_dict.get('data', [])
            skip_restyle = False
            if isinstance(data, list) and data and isinstance(data[0], dict):
                trace0 = data[0]
                if trace0.get('colorscale') == self._heatmap_colorscale:
                    skip_restyle = True
                else:
                    trace0['colorscale'] = self._heatmap_colorscale
            if not skip_restyle:
                js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {{
  colorscale: [{json.dumps(self._heatmap_colorscale)}]
}}, [0]);
"""
                self._plot.client.run_javascript(js, timeout=2.0)
        elif self._image_trace_active():
            await self._refresh_full_png()
        else:
            raise RuntimeError('No raster trace to style. Load data and show a heatmap or overview image first.')

    async def set_heatmap_style(
        self,
        *,
        colorscale: PlotlyColorscale,
        zmin: float,
        zmax: float,
        preserve_viewport: bool = False,
    ) -> None:
        """Apply colorscale and intensity window in a single browser round trip.

        Equivalent to calling :meth:`set_heatmap_colorscale` and
        :meth:`set_heatmap_contrast` back-to-back, but issues exactly one
        ``Plotly.restyle`` (when a heatmap trace is active) or one PNG overview
        re-encode (when an image trace is active). Use this when both the LUT
        and the intensity window change together (e.g. ``ImageContrast``
        applied for the current channel).

        Args:
            colorscale: Plotly colorscale name or stop list.
            zmin: Minimum intensity for the colorscale mapping.
            zmax: Maximum intensity for the colorscale mapping.
            preserve_viewport: When ``True`` and an overview ``image`` trace is
                active, re-encode the PNG without resetting axis ranges.
        """
        z_lo, z_hi = (float(min(zmin, zmax)), float(max(zmin, zmax)))
        self._heatmap_colorscale = colorscale
        self._contrast_zmin = z_lo
        self._contrast_zmax = z_hi

        if self._heatmap_trace_active():
            # logger.debug('set_heatmap_style: restyle heatmap (zmin=%s zmax=%s)', z_lo, z_hi)
            data = self._plotly_dict.get('data', [])
            skip_restyle = False
            if isinstance(data, list) and data and isinstance(data[0], dict):
                trace0 = data[0]
                if (
                    trace0.get('colorscale') == self._heatmap_colorscale
                    and trace0.get('zmin') == z_lo
                    and trace0.get('zmax') == z_hi
                ):
                    skip_restyle = True
                else:
                    trace0['colorscale'] = self._heatmap_colorscale
                    trace0['zmin'] = z_lo
                    trace0['zmax'] = z_hi
            if not skip_restyle:
                js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {{
  colorscale: [{json.dumps(self._heatmap_colorscale)}],
  zmin: [{json.dumps(z_lo)}],
  zmax: [{json.dumps(z_hi)}]
}}, [0]);
"""
                self._plot.client.run_javascript(js, timeout=2.0)
        elif self._image_trace_active():
            # logger.debug(
            #     'set_heatmap_style: re-encode overview PNG (zmin=%s zmax=%s preserve=%s)',
            #     z_lo,
            #     z_hi,
            #     preserve_viewport,
            # )
            viewport = self.get_viewport() if preserve_viewport else None
            await self._refresh_full_png(display_axis_ranges=viewport)
        else:
            raise RuntimeError(
                'No raster trace to style. Load data and show a heatmap or overview image first.'
            )

    async def _on_plotly_doubleclick(self, event) -> None:
        """Reset to full overview PNG (same path as initial load) and emit auto x-range."""
        if self._service is None or self._plot is None:
            return

        self._cancel_viewport_settle()
        self._uirevision = self._new_uirevision()
        response = self._service.full_image_png(
            display_style=self._display_style(),
            max_pixels=self._overview_max_pixels,
        )
        # logger.debug('doubleclick reset: overview PNG level=%s', response.level)
        await self.apply_response(response)
        if self._transform is not None:
            x_lo_data, x_hi_data = self._transform.row_col_to_plot_x_range(self._current_bounds)
            y_lo_data, y_hi_data = self._transform.row_col_to_plot_y_range(self._current_bounds)
            display_axis_ranges = ((x_lo_data, x_hi_data), (y_lo_data, y_hi_data))
            self._last_applied_x_range = (x_lo_data, x_hi_data)
            self._last_display_axis_ranges = display_axis_ranges
        if self._on_x_range_changed is not None:
            self._on_x_range_changed(None, None)

    async def _on_plotly_relayout(self, event) -> None:
        """Observe Plotly viewport changes; ROI edits stay immediate.

        Plotly has already updated the browser-side view when this callback
        runs. Bracket-key axis relayouts schedule a debounced settle pass that
        reads the live viewport, emits ``on_x_range_changed``, and refreshes
        raster content without touching layout.
        """
        if self._service is None or self._plot is None or self._transform is None:
            return

        raw_args = getattr(event, 'args', {}) or {}
        args = dict(raw_args) if isinstance(raw_args, dict) else {'raw_args': raw_args}

        if self._handle_roi_shape_relayout(args):
            return
        if not _relayout_has_axis_range(args):
            return
        if self._is_display_viewport_echo(args):
            # logger.debug('plotly_relayout: ignored display viewport echo keys=%s', list(args.keys()))
            return
        if _is_normalized_only_relayout(args) or _relayout_has_bracket_axis_range(args):
            # logger.debug('plotly_relayout: schedule viewport settle keys=%s', list(args.keys()))
            self._schedule_viewport_settle()
            return
        # logger.debug('plotly_relayout: ignored axis relayout keys=%s', list(args.keys()))

    def _is_display_viewport_echo(self, args: dict[str, object]) -> bool:
        """Return whether ``args`` repeats the last programmatic display viewport.

        Plotly emits normalized ``xaxis.range`` / ``yaxis.range`` list keys after
        ``set_data`` and full figure rebuilds. User scroll-zoom uses the same
        key shape with different values and must not be filtered here.
        """
        display_ranges = self._display_axis_ranges_from_relayout(args)
        if display_ranges is None:
            return False
        last = self._last_display_axis_ranges
        if last is None:
            return False
        return _display_ranges_equal(display_ranges, last)

    def _schedule_viewport_settle(self) -> None:
        """Schedule one debounced viewport settle (x-range emit + raster refresh)."""
        self._viewport_settle_requested = True
        task = self._viewport_settle_task
        if task is not None and not task.done():
            return
        self._viewport_settle_task = asyncio.create_task(self._debounced_viewport_settle_loop())

    async def _debounced_viewport_settle_loop(self) -> None:
        """Coalesce rapid viewport gestures; read live layout once per burst."""
        try:
            while True:
                await asyncio.sleep(_VIEWPORT_SETTLE_DEBOUNCE_SECONDS)
                if not self._viewport_settle_requested:
                    return
                self._viewport_settle_requested = False

                settled = await self._read_live_viewport_from_browser()
                if settled is None:
                    # logger.debug('viewport settle: live browser viewport unavailable')
                    return

                payload, display_axis_ranges = settled
                self._last_display_axis_ranges = display_axis_ranges
                self._emit_x_range_from_display(display_axis_ranges)
                await self._refresh_raster_for_viewport(payload, display_axis_ranges)

                if not self._viewport_settle_requested:
                    return
        except asyncio.CancelledError:
            raise
        except Exception:
            logger.exception('Failed during debounced viewport settle.')
        finally:
            if asyncio.current_task() is self._viewport_settle_task:
                self._viewport_settle_task = None

    def _cancel_viewport_settle(self) -> None:
        """Cancel any scheduled viewport settle before replacing or resetting data."""
        self._viewport_settle_requested = False
        task = self._viewport_settle_task
        if task is not None and not task.done():
            task.cancel()
        self._viewport_settle_task = None

    async def _refresh_raster_for_viewport(
        self,
        payload: PlotlyViewportPayload,
        display_axis_ranges: tuple[tuple[float, float], tuple[float, float]],
    ) -> None:
        """Render and apply raster content for the live browser viewport."""
        if self._service is None:
            return
        request = self.request_from_plotly(payload)
        response = self._service.render(request, display_style=self._display_style())
        # logger.debug(
        #     'viewport raster refresh: bounds=%s mode=%s level=%s adequate=%s',
        #     request.bounds,
        #     response.mode,
        #     response.level,
        #     self._response_is_adequate(response, visible_bounds=request.bounds),
        # )
        if self._response_is_adequate(response, visible_bounds=request.bounds):
            return
        await self.apply_response(response, display_axis_ranges=display_axis_ranges)

    def _response_is_adequate(
        self,
        response: RenderResponse,
        *,
        visible_bounds: RowColBounds,
    ) -> bool:
        """Return whether the current raster payload already covers the viewport."""
        last = self._last_applied_response
        if last is None:
            return False
        if last.mode != response.mode or last.level != response.level:
            return False
        clip = last.bounds
        return (
            clip.row_min <= visible_bounds.row_min
            and clip.row_max >= visible_bounds.row_max
            and clip.col_min <= visible_bounds.col_min
            and clip.col_max >= visible_bounds.col_max
        )

    def _handle_roi_shape_relayout(self, args: dict[str, object]) -> bool:
        """Handle Plotly shape drag relayout while ROI editing is active.

        Args:
            args: Raw Plotly relayout payload.

        Returns:
            True when the payload was an ROI edit payload and should not be
            processed as an axis range update.
        """
        editing_roi_id = self._plotly_rois.editing_roi_id
        if editing_roi_id is None:
            return False
        if not any(key.startswith('shapes[') for key in args):
            return False

        layout = self._plotly_dict.setdefault('layout', {})
        shapes = layout.get('shapes', [])
        if not isinstance(shapes, list):
            return True

        pending: dict[int, dict[str, float]] = {}
        snapback = False
        for key, value in args.items():
            parsed = self._parse_shape_coord_relayout_key(key)
            if parsed is None:
                continue
            shape_index, coord = parsed
            if not (0 <= shape_index < len(shapes)):
                snapback = True
                break
            shape = shapes[shape_index]
            if not isinstance(shape, dict):
                snapback = True
                break
            roi_id = PlotlyRoiOverlayLayer.roi_id_from_shape(shape)
            if roi_id != editing_roi_id:
                snapback = True
                break
            try:
                fval = float(value)
            except (TypeError, ValueError):
                continue
            pending.setdefault(roi_id, {})[coord] = fval

        if snapback:
            self._sync_roi_shapes_to_plotly_dict()
            self._relayout_shapes()
            return True

        edited = False
        for roi_id, coords in pending.items():
            roi = self._plotly_roi_by_id(roi_id)
            if roi is None:
                continue
            x0 = coords.get('x0', roi.x0)
            x1 = coords.get('x1', roi.x1)
            y0 = coords.get('y0', roi.y0)
            y1 = coords.get('y1', roi.y1)
            updated = self._plotly_rois.update_roi_bounds(
                roi_id,
                x0=x0,
                x1=x1,
                y0=y0,
                y1=y1,
            )
            if updated is None:
                continue
            edited = True
            if self._on_roi_bounds_preview is not None:
                self._on_roi_bounds_preview(roi_id, updated.x0, updated.x1, updated.y0, updated.y1)

        if edited:
            self._sync_roi_shapes_to_plotly_dict()
            self._relayout_shapes()
        return True

    @staticmethod
    def _parse_shape_coord_relayout_key(key: str) -> tuple[int, str] | None:
        """Parse ``shapes[N].x0`` style relayout keys.

        Args:
            key: Plotly relayout key.

        Returns:
            Tuple of shape index and coordinate name, or None for non-ROI
            shape coordinate keys.
        """
        if not key.startswith('shapes['):
            return None
        try:
            prefix, coord = key.split('].', 1)
            index = int(prefix[len('shapes['):])
        except (ValueError, IndexError):
            return None
        if coord not in {'x0', 'x1', 'y0', 'y1'}:
            return None
        return index, coord

    def _plotly_roi_by_id(self, roi_id: int) -> RectRoiOverlay | None:
        """Return a managed ROI overlay by id.

        Args:
            roi_id: ROI identifier.

        Returns:
            Matching ROI overlay, or None.
        """
        for roi in self._plotly_rois.rois:
            if roi.roi_id == roi_id:
                return roi
        return None

    def _axis_range_from_relayout(
        self,
        relayout: dict[str, object],
        *,
        axis: str,
    ) -> tuple[float, float] | None:
        """Return one Plotly axis range from list or bracket relayout keys.

        Args:
            relayout: Raw or canonical Plotly relayout payload.
            axis: Axis key prefix, for example ``'xaxis'`` or ``'yaxis'``.

        Returns:
            ``(lo, hi)`` when the relayout payload contains both values,
            otherwise ``None``.
        """
        raw = relayout.get(f'{axis}.range')
        if isinstance(raw, (list, tuple)) and len(raw) == 2:
            try:
                return float(raw[0]), float(raw[1])
            except (TypeError, ValueError):
                return None

        lo = relayout.get(f'{axis}.range[0]')
        hi = relayout.get(f'{axis}.range[1]')
        if lo is None or hi is None:
            return None
        try:
            return float(lo), float(hi)
        except (TypeError, ValueError):
            return None

    def _display_axis_ranges_from_relayout(
        self,
        relayout: dict[str, object],
    ) -> tuple[tuple[float, float], tuple[float, float]] | None:
        """Snapshot the Plotly display viewport represented by a relayout.

        Plotly often reports only the axis that changed during an axis-drag
        gesture. For display preservation, fill any missing axis from the last
        displayed viewport. Only fall back to current backend bounds when no
        display cache exists yet.
        """
        if self._transform is None:
            return None

        x_range = self._axis_range_from_relayout(relayout, axis='xaxis')
        y_range = self._axis_range_from_relayout(relayout, axis='yaxis')
        if x_range is None and y_range is None:
            return None

        cached = self._last_display_axis_ranges
        if x_range is None:
            if cached is not None:
                x_range = cached[0]
            else:
                x_range = self._transform.row_col_to_plot_x_range(self._current_bounds)
        if y_range is None:
            if cached is not None:
                y_range = cached[1]
            else:
                y_range = self._transform.row_col_to_plot_y_range(self._current_bounds)

        return x_range, y_range

    def _relayout_from_display_axis_ranges(
        self,
        display_axis_ranges: tuple[tuple[float, float], tuple[float, float]],
    ) -> dict[str, object]:
        """Return canonical bracket-key relayout payload for preserved ranges."""
        (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
        return {
            'xaxis.range[0]': x_lo,
            'xaxis.range[1]': x_hi,
            'yaxis.range[0]': y_lo,
            'yaxis.range[1]': y_hi,
        }

    def _emit_x_range_from_display(
        self,
        display_axis_ranges: tuple[tuple[float, float], tuple[float, float]],
    ) -> None:
        """Invoke ``on_x_range_changed`` from a live Plotly display viewport."""
        if self._on_x_range_changed is None:
            return
        (x_lo, x_hi), _ = display_axis_ranges
        new_range = (float(x_lo), float(x_hi))
        if self._is_x_range_echo(new_range):
            return
        self._last_applied_x_range = new_range
        self._on_x_range_changed(new_range[0], new_range[1])

    def _emit_x_range_from_relayout(self, merged: dict[str, object]) -> None:
        """Invoke ``on_x_range_changed`` from a merged relayout payload.

        Args:
            merged: Plotly relayout payload after partial-key merging.

        Returns:
            None.
        """
        display_axis_ranges = self._display_axis_ranges_from_relayout(merged)
        if display_axis_ranges is None:
            return
        self._emit_x_range_from_display(display_axis_ranges)

    def _is_x_range_echo(
        self, new_range: tuple[float | None, float | None]
    ) -> bool:
        """Return whether ``new_range`` echoes the last programmatic apply.

        Args:
            new_range: Candidate ``(x_min, x_max)`` from a relayout event.

        Returns:
            ``True`` when both values match the last applied pair within
            tolerance.
        """
        last = self._last_applied_x_range
        if last is None:
            return False
        return _x_range_equal(last, new_range)

    async def _read_live_viewport_from_browser(
        self,
    ) -> tuple[PlotlyViewportPayload, tuple[tuple[float, float], tuple[float, float]]] | None:
        """Read the live Plotly viewport and plot size from the browser.

        Returns:
            Tuple of viewport payload and ``((x0, x1), (y0, y1))`` display ranges,
            or ``None`` when the browser state is unavailable.
        """
        if self._plot is None:
            return None

        js = f"""
const host = getElement({self._plot.id}).$el;
if (!host) return null;
const plotDiv = host.querySelector('.js-plotly-plot') || host;
if (!plotDiv || !plotDiv.layout) return null;
const xr = plotDiv.layout.xaxis && plotDiv.layout.xaxis.range;
const yr = plotDiv.layout.yaxis && plotDiv.layout.yaxis.range;
if (!xr || !yr || xr.length !== 2 || yr.length !== 2) return null;
const rect = plotDiv.getBoundingClientRect();
return {{
  x_range: [Number(xr[0]), Number(xr[1])],
  y_range: [Number(yr[0]), Number(yr[1])],
  width_px: Math.max(1, Math.round(rect.width)),
  height_px: Math.max(1, Math.round(rect.height)),
}};
"""
        result: object | None = None
        try:
            result = await self._plot.client.run_javascript(js, timeout=2.0)
        except (TimeoutError, RuntimeError):
            result = None

        if not isinstance(result, dict):
            return None

        try:
            x_range_raw = result.get('x_range')
            y_range_raw = result.get('y_range')
            if not isinstance(x_range_raw, list) or not isinstance(y_range_raw, list):
                return None
            if len(x_range_raw) != 2 or len(y_range_raw) != 2:
                return None
            x_lo, x_hi = float(x_range_raw[0]), float(x_range_raw[1])
            y_lo, y_hi = float(y_range_raw[0]), float(y_range_raw[1])
            width_px = int(result.get('width_px', 0) or 0)
            height_px = int(result.get('height_px', 0) or 0)
        except (TypeError, ValueError):
            return None

        if width_px <= 0 or height_px <= 0:
            if self._last_viewport_size_px is None:
                return None
            width_px, height_px = self._last_viewport_size_px
        else:
            self._last_viewport_size_px = (width_px, height_px)

        display_axis_ranges = ((x_lo, x_hi), (y_lo, y_hi))
        relayout = self._relayout_from_display_axis_ranges(display_axis_ranges)
        payload = PlotlyViewportPayload(
            relayout=relayout,
            width_px=width_px,
            height_px=height_px,
        )
        return payload, display_axis_ranges

    def _build_initial_figure(self) -> dict:
        """Return the figure shown before or after data is set."""
        if self._service is None or self._transform is None:
            self._plotly_dict = {
                'data': [],
                'layout': {
                    'margin': resolve_plot_layout_margins(
                        show_axis_labels=False,
                        show_legend=False,
                    ),
                    'uirevision': self._uirevision,
                    'autosize': True,
                    'xaxis': {'range': [0.0, 1.0]},
                    'yaxis': {'range': [0.0, 1.0]},
                    'dragmode': 'zoom',
                },
                'config': dict(RASTER_VIEWER_PLOTLY_CONFIG),
            }
            self._apply_display_options_to_plotly_dict()
            return self._plotly_dict

        logger.info('making initial default png -->> never called?')

        response = self._service.full_image_png(
            display_style=self._display_style(),
            max_pixels=self._overview_max_pixels,
        )
        self._current_bounds = response.bounds
        figure = build_plotly_figure(
            response=response,
            uirevision=self._uirevision,
            heatmap_colorscale=self._heatmap_colorscale,
        )
        layout = figure.setdefault('layout', {})
        shapes = layout.get('shapes', [])
        if not isinstance(shapes, list):
            shapes = []
        layout['shapes'] = self._plotly_rois.merge_shapes(shapes)
        data = figure.get('data', [])
        if not isinstance(data, list):
            data = []
        figure['data'] = self._plotly_trace_overlays.merge_traces(data)
        self._plotly_dict = figure
        self._apply_display_options_to_plotly_dict()
        return self._plotly_dict

    def _display_style(self) -> RasterDisplayStyle:
        """Return backend PNG / heatmap styling derived from viewer state."""
        return RasterDisplayStyle(
            colorscale=self._heatmap_colorscale,
            zmin=self._contrast_zmin,
            zmax=self._contrast_zmax,
        )

    async def _refresh_full_png(
        self,
        *,
        display_axis_ranges: DisplayAxisRanges | None = None,
    ) -> None:
        """Re-run full-image PNG render with :meth:`_display_style` and push to the plot."""
        if self._service is None or self._plot is None:
            raise RuntimeError('Viewer must be built with data before refreshing the overview.')
        response = self._service.full_image_png(
            display_style=self._display_style(),
            max_pixels=self._overview_max_pixels,
        )
        # logger.debug(
        #     '_refresh_full_png: level=%s mode=%s preserve_viewport=%s',
        #     response.level,
        #     response.mode,
        #     display_axis_ranges is not None,
        # )
        await self.apply_response(response, display_axis_ranges=display_axis_ranges)

    def _heatmap_trace_active(self) -> bool:
        """Return ``True`` when the figure's first trace is a heatmap."""
        if self._plot is None:
            return False
        data = self._plotly_dict.get('data', [])
        if not isinstance(data, list) or not data:
            return False
        trace = data[0]
        return isinstance(trace, dict) and trace.get('type') == 'heatmap'

    def _image_trace_active(self) -> bool:
        """Return ``True`` when the figure's first trace is a raster ``image``."""
        if self._plot is None:
            return False
        data = self._plotly_dict.get('data', [])
        if not isinstance(data, list) or not data:
            return False
        trace = data[0]
        return isinstance(trace, dict) and trace.get('type') == 'image'

    @staticmethod
    def _new_uirevision() -> str:
        """Return a new Plotly UI revision token."""
        return uuid4().hex

    @staticmethod
    def _square_plot_scaleratio_for_source(source: BackendImage) -> float:
        """Return the Plotly y/x scale ratio that makes the full source square.

        Args:
            source: Current backend image.

        Returns:
            Plotly ``yaxis.scaleratio`` value for square display.
        """
        y_extent = float(source.width) * float(source.grid.dy)
        if y_extent <= 0:
            return 1.0
        x_extent = float(source.height) * float(source.grid.dx)
        return x_extent / y_extent

current_bounds property

current_bounds: RowColBounds

Return the most recent backend row/column bounds.

has_data property

has_data: bool

Return True when a dataset has been set.

plot property

plot: Element | None

Return the NiceGUI Plotly element.

figure property

figure: dict[str, object]

Return the current figure dictionary.

display_options property

display_options: PlotlyRasterViewerDisplayOptions

Return mutable display options used by context-menu actions.

get_viewport

get_viewport() -> DisplayAxisRanges | None

Return the last applied Plotly axis ranges, if any.

Returns:

Type	Description
DisplayAxisRanges | None	((x_lo, x_hi), (y_lo, y_hi)) in plot physical coordinates,
DisplayAxisRanges | None	or None before the first data load or viewport update.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def get_viewport(self) -> DisplayAxisRanges | None:
    """Return the last applied Plotly axis ranges, if any.

    Returns:
        ``((x_lo, x_hi), (y_lo, y_hi))`` in plot physical coordinates,
        or ``None`` before the first data load or viewport update.
    """
    cached = self._last_display_axis_ranges
    if cached is None:
        return None
    (x_lo, x_hi), (y_lo, y_hi) = cached
    return ((float(x_lo), float(x_hi)), (float(y_lo), float(y_hi)))

build

build() -> Element

Create the NiceGUI Plotly element.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def build(self) -> Element:
    """Create the NiceGUI Plotly element."""
    self._plotly_dict = self._build_initial_figure()

    self._plot = ui.plotly(self._plotly_dict)
    self._plot.on('plotly_relayout', self._on_plotly_relayout)
    self._plot.on('plotly_doubleclick', self._on_plotly_doubleclick)
    self._ctx_menu = ui.context_menu()
    self._context_menu_builder = PlotlyRasterViewerContextMenu(get_viewer=lambda: self)
    self._plot.on('contextmenu', self._on_context_menu_event)
    if is_pywebview_desktop():
        ui.timer(0.05, self._install_pywebview_context_menu_guards, once=True)

    return self._plot

set_data async

set_data(
    data: ndarray,
    *,
    grid: RasterGridSpec,
    overview_max_pixels: int | None = None,
) -> RenderResponse

Set a new 2D dataset and fully refresh the plot.

Parameters:

Name	Type	Description	Default
data	ndarray	New full-resolution 2D array (rows, columns).	required
grid	RasterGridSpec	Physical spacing and axis labels (dx/dy must be positive).	required
overview_max_pixels	int | None	Optional pixel budget for full-extent overview PNGs (initial render and double-click reset). When None, the service's conservative coarse overview is used. A value lets small images render the full extent at full resolution so the overview matches the zoomed-in heatmap.	None

Returns:

Type	Description
RenderResponse	Initial full-image PNG response for the new dataset.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

async def set_data(
    self,
    data: np.ndarray,
    *,
    grid: RasterGridSpec,
    overview_max_pixels: int | None = None,
) -> RenderResponse:
    """Set a new 2D dataset and fully refresh the plot.

    Args:
        data: New full-resolution 2D array ``(rows, columns)``.
        grid: Physical spacing and axis labels (``dx``/``dy`` must be positive).
        overview_max_pixels: Optional pixel budget for full-extent overview
            PNGs (initial render and double-click reset). When ``None``, the
            service's conservative coarse overview is used. A value lets
            small images render the full extent at full resolution so the
            overview matches the zoomed-in heatmap.

    Returns:
        Initial full-image PNG response for the new dataset.
    """
    source = BackendImage(data, grid=grid)
    pyramid = ImagePyramid(source)
    return await self.set_data_from_pyramid(
        data,
        grid=grid,
        pyramid=pyramid,
        overview_max_pixels=overview_max_pixels,
    )

set_data_from_pyramid async

set_data_from_pyramid(
    data: ndarray,
    *,
    grid: RasterGridSpec,
    pyramid: ImagePyramid,
    overview_max_pixels: int | None = None,
) -> RenderResponse

Set a new 2D dataset using a prebuilt pyramid and fully refresh the plot.

Use this when a caller already cached :class:ImagePyramid levels for data. Physical calibration may change without rebuilding the pyramid.

Parameters:

Name	Type	Description	Default
data	ndarray	Full-resolution 2D array (rows, columns).	required
grid	RasterGridSpec	Physical spacing and axis labels (dx/dy must be positive).	required
pyramid	ImagePyramid	Prebuilt pyramid for data.	required
overview_max_pixels	int | None	Optional pixel budget for full-extent overview PNGs (initial render and double-click reset). When None, the service's conservative coarse overview is used.	None

Returns:

Type	Description
RenderResponse	Initial full-image PNG response for the new dataset.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

async def set_data_from_pyramid(
    self,
    data: np.ndarray,
    *,
    grid: RasterGridSpec,
    pyramid: ImagePyramid,
    overview_max_pixels: int | None = None,
) -> RenderResponse:
    """Set a new 2D dataset using a prebuilt pyramid and fully refresh the plot.

    Use this when a caller already cached :class:`ImagePyramid` levels for
    ``data``. Physical calibration may change without rebuilding the pyramid.

    Args:
        data: Full-resolution 2D array ``(rows, columns)``.
        grid: Physical spacing and axis labels (``dx``/``dy`` must be positive).
        pyramid: Prebuilt pyramid for ``data``.
        overview_max_pixels: Optional pixel budget for full-extent overview
            PNGs (initial render and double-click reset). When ``None``, the
            service's conservative coarse overview is used.

    Returns:
        Initial full-image PNG response for the new dataset.
    """
    self._cancel_viewport_settle()
    source = BackendImage(data, grid=grid)
    self._display_options.square_plot = source.height == source.width
    self._square_plot_scaleratio = self._square_plot_scaleratio_for_source(source)
    self._service = RasterViewService(
        source=source,
        pyramid=pyramid,
    )
    self._transform = PlotlyCoordTransform(
        nrows=source.height,
        ncols=source.width,
        grid=grid,
    )
    self._axis_title_texts = {'xaxis': grid.x_unit or '', 'yaxis': grid.y_unit or ''}
    self._current_bounds = self._transform.full_row_col_bounds()
    self._uirevision = self._new_uirevision()
    self._heatmap_colorscale = DEFAULT_HEATMAP_COLORSCALE
    self._contrast_zmin = None
    self._contrast_zmax = None
    self._overview_max_pixels = overview_max_pixels
    self._plotly_trace_overlays.clear_overlays()

    response = self._service.full_image_png(
        display_style=self._display_style(),
        max_pixels=self._overview_max_pixels,
    )
    self._current_bounds = response.bounds
    # Pin echo dedup to the new data extent so the follow-up
    # ``plotly_relayout`` Plotly fires after ``_uirevision`` rotation
    # (carrying the auto-ranged data extent) is suppressed by value, not by
    # a one-shot guard. ``_is_x_range_echo`` compares with float tolerance.
    x_lo_data, x_hi_data = self._transform.row_col_to_plot_x_range(self._current_bounds)
    y_lo_data, y_hi_data = self._transform.row_col_to_plot_y_range(self._current_bounds)
    display_axis_ranges = ((x_lo_data, x_hi_data), (y_lo_data, y_hi_data))
    self._last_applied_x_range = (x_lo_data, x_hi_data)
    self._last_display_axis_ranges = display_axis_ranges
    self._last_applied_response = response
    self._plotly_dict = build_plotly_figure(
        response=response,
        uirevision=self._uirevision,
        heatmap_colorscale=self._heatmap_colorscale,
    )
    self._sync_roi_shapes_to_plotly_dict()
    self._sync_trace_overlays_to_plotly_dict()
    self._apply_display_options_to_plotly_dict()

    if self._plot is not None:
        self._plot.figure = self._plotly_dict
        self._plot.update()
    # logger.debug(
    #     'set_data_from_pyramid: mode=%s level=%s bounds=%s trace=%s',
    #     response.mode,
    #     response.level,
    #     response.bounds,
    #     self._raster_trace_type(),
    # )
    return response

swap_slice_plane async

swap_slice_plane(
    data: ndarray,
    *,
    grid: RasterGridSpec,
    pyramid: ImagePyramid,
    display_axis_ranges: DisplayAxisRanges | None = None,
) -> RenderResponse

Replace the displayed 2D plane while preserving the zoom viewport.

Intended for Z/T slice scrubs within one file. Unlike :meth:set_data_from_pyramid, this keeps uirevision, contrast, trace overlays, and ROI shapes. When display_axis_ranges is omitted, uses :meth:get_viewport; when that is also unavailable, falls back to a full-extent overview load.

Parameters:

Name	Type	Description	Default
data	ndarray	Full-resolution 2D array for the new plane.	required
grid	RasterGridSpec	Physical spacing and axis labels.	required
pyramid	ImagePyramid	Prebuilt pyramid for data.	required
display_axis_ranges	DisplayAxisRanges | None	Optional viewport to preserve. Clipped to image bounds (defensive; Z/T planes share shape).	None

Returns:

Type	Description
RenderResponse	Render response applied to the viewer.

Raises:

Type	Description
RuntimeError	When the viewer has not been built with data yet.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

async def swap_slice_plane(
    self,
    data: np.ndarray,
    *,
    grid: RasterGridSpec,
    pyramid: ImagePyramid,
    display_axis_ranges: DisplayAxisRanges | None = None,
) -> RenderResponse:
    """Replace the displayed 2D plane while preserving the zoom viewport.

    Intended for Z/T slice scrubs within one file. Unlike
    :meth:`set_data_from_pyramid`, this keeps ``uirevision``, contrast,
    trace overlays, and ROI shapes. When ``display_axis_ranges`` is
    omitted, uses :meth:`get_viewport`; when that is also unavailable,
    falls back to a full-extent overview load.

    Args:
        data: Full-resolution 2D array for the new plane.
        grid: Physical spacing and axis labels.
        pyramid: Prebuilt pyramid for ``data``.
        display_axis_ranges: Optional viewport to preserve. Clipped to
            image bounds (defensive; Z/T planes share shape).

    Returns:
        Render response applied to the viewer.

    Raises:
        RuntimeError: When the viewer has not been built with data yet.
    """
    self._cancel_viewport_settle()
    source = BackendImage(data, grid=grid)
    self._display_options.square_plot = source.height == source.width
    self._square_plot_scaleratio = self._square_plot_scaleratio_for_source(source)
    self._service = RasterViewService(
        source=source,
        pyramid=pyramid,
    )
    self._transform = PlotlyCoordTransform(
        nrows=source.height,
        ncols=source.width,
        grid=grid,
    )
    self._axis_title_texts = {'xaxis': grid.x_unit or '', 'yaxis': grid.y_unit or ''}

    if display_axis_ranges is None:
        display_axis_ranges = self.get_viewport()

    if display_axis_ranges is None:
        response = self._service.full_image_png(
            display_style=self._display_style(),
            max_pixels=self._overview_max_pixels,
        )
        self._current_bounds = response.bounds
        await self.apply_response(response)
        # logger.debug(
        #     'swap_slice_plane: no cached viewport mode=%s level=%s',
        #     response.mode,
        #     response.level,
        # )
        return response

    clamped = self._clamp_display_axis_ranges(display_axis_ranges)
    full_bounds = self._transform.full_row_col_bounds()
    full_ranges: DisplayAxisRanges = (
        self._transform.row_col_to_plot_x_range(full_bounds),
        self._transform.row_col_to_plot_y_range(full_bounds),
    )

    if _display_ranges_equal(clamped, full_ranges):
        response = self._service.full_image_png(
            display_style=self._display_style(),
            max_pixels=self._overview_max_pixels,
        )
        self._current_bounds = response.bounds
        self._last_applied_x_range = clamped[0]
        self._last_display_axis_ranges = clamped
        self._last_applied_response = response
        await self.apply_response(response, display_axis_ranges=clamped)
        # logger.debug(
        #     'swap_slice_plane: full extent mode=%s level=%s',
        #     response.mode,
        #     response.level,
        # )
        return response

    self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
        clamped[0][0],
        clamped[0][1],
        clamped[1][0],
        clamped[1][1],
    )
    payload = self._viewport_payload_for_display_ranges(clamped)
    request = self.request_from_plotly(payload)
    response = self._service.render(request, display_style=self._display_style())
    self._last_applied_x_range = clamped[0]
    self._last_display_axis_ranges = clamped
    self._last_applied_response = response
    await self.apply_response(response, display_axis_ranges=clamped)
    # logger.debug(
    #     'swap_slice_plane: preserve viewport mode=%s level=%s bounds=%s',
    #     response.mode,
    #     response.level,
    #     response.bounds,
    # )
    return response

clear_data async

clear_data() -> None

Remove the current dataset and show an empty Plotly figure.

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

async def clear_data(self) -> None:
    """Remove the current dataset and show an empty Plotly figure.

    Returns:
        None.
    """
    self._cancel_viewport_settle()
    self._service = None
    self._transform = None
    self._overview_max_pixels = None
    self._last_applied_x_range = None
    self._last_display_axis_ranges = None
    self._last_applied_response = None
    self._last_viewport_size_px = None
    self._heatmap_colorscale = DEFAULT_HEATMAP_COLORSCALE
    self._contrast_zmin = None
    self._contrast_zmax = None
    self._axis_title_texts = {'xaxis': '', 'yaxis': ''}
    self._plotly_trace_overlays.clear_overlays()
    self._plotly_rois.set_rois([])
    self._uirevision = self._new_uirevision()
    self._plotly_dict = self._build_initial_figure()
    if self._plot is not None:
        self._plot.figure = self._plotly_dict
        self._plot.update()

apply_response async

apply_response(
    response: RenderResponse,
    *,
    display_axis_ranges: tuple[
        tuple[float, float], tuple[float, float]
    ]
    | None = None,
) -> None

Apply a backend response to the browser-side Plotly plot.

Parameters:

Name	Type	Description	Default
response	RenderResponse	Rendered raster data for the requested backend bounds.	required
display_axis_ranges	tuple[tuple[float, float], tuple[float, float]] | None	Optional ((x0, x1), (y0, y1)) viewport chosen by Plotly before a relayout-driven raster refresh. When provided, preserve these axis ranges while swapping the raster trace/pyramid data from response.	None

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

async def apply_response(
    self,
    response: RenderResponse,
    *,
    display_axis_ranges: tuple[tuple[float, float], tuple[float, float]] | None = None,
) -> None:
    """Apply a backend response to the browser-side Plotly plot.

    Args:
        response: Rendered raster data for the requested backend bounds.
        display_axis_ranges: Optional ``((x0, x1), (y0, y1))`` viewport
            chosen by Plotly before a relayout-driven raster refresh. When
            provided, preserve these axis ranges while swapping the raster
            trace/pyramid data from ``response``.
    """
    if self._plot is None:
        raise RuntimeError('Viewer must be built before applying responses.')

    previous_trace_type = self._raster_trace_type()
    # logger.debug(
    #     'apply_response: mode=%s level=%s prev_trace=%s preserve_viewport=%s',
    #     response.mode,
    #     response.level,
    #     previous_trace_type,
    #     display_axis_ranges is not None,
    # )
    next_plotly_dict = build_plotly_figure(
        response=response,
        uirevision=self._uirevision,
        heatmap_colorscale=self._heatmap_colorscale,
    )

    # Relayout-driven raster refreshes happen after Plotly has already
    # applied the user's pan/zoom in the browser. When the raster trace type
    # does not change, update trace 0 only with ``Plotly.restyle`` so the
    # client-owned x/y axis ranges are left untouched. Full figure rebuilds
    # remain the path for initial load, reset, ROI/layout changes, and
    # PNG<->heatmap trace-type switches.
    if display_axis_ranges is not None and self._can_restyle_raster_trace(response, previous_trace_type):
        # logger.debug('apply_response: restyle trace 0 (preserve browser axes)')
        self._current_bounds = response.bounds
        self._replace_local_raster_trace(next_plotly_dict)
        self._sync_hover_info_to_plotly_dict()
        (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
        self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)
        self._last_display_axis_ranges = display_axis_ranges
        self._last_applied_x_range = display_axis_ranges[0]
        self._last_applied_response = response
        await self._restyle_raster_trace0_from_plotly_dict()
        return

    if display_axis_ranges is not None:
        # logger.debug('apply_response: react data preserving browser layout')
        self._current_bounds = response.bounds
        self._replace_local_raster_trace(next_plotly_dict)
        self._sync_hover_info_to_plotly_dict()
        (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
        self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)
        self._last_display_axis_ranges = display_axis_ranges
        self._last_applied_x_range = display_axis_ranges[0]
        self._last_applied_response = response
        await self._react_plotly_data_preserving_browser_layout()
        return

    self._current_bounds = response.bounds
    self._plotly_dict = next_plotly_dict
    self._sync_roi_shapes_to_plotly_dict()
    self._sync_trace_overlays_to_plotly_dict()
    self._apply_display_options_to_plotly_dict()

    if display_axis_ranges is None:
        if self._transform is not None:
            x_range = self._transform.row_col_to_plot_x_range(response.bounds)
            y_range = self._transform.row_col_to_plot_y_range(response.bounds)
            display_axis_ranges = (x_range, y_range)
    else:
        (x_lo, x_hi), (y_lo, y_hi) = display_axis_ranges
        self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)

    if display_axis_ranges is not None:
        self._last_display_axis_ranges = display_axis_ranges
        self._last_applied_x_range = display_axis_ranges[0]
    self._last_applied_response = response

    self._plot.figure = self._plotly_dict
    self._plot.update()

set_rois

set_rois(rois: Sequence[RectRoiOverlay]) -> None

Replace all rectangular ROI overlays without pushing raster data.

Parameters:

Name	Type	Description	Default
rois	Sequence[RectRoiOverlay]	ROI overlays in Plotly physical coordinates.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_rois(self, rois: Sequence[RectRoiOverlay]) -> None:
    """Replace all rectangular ROI overlays without pushing raster data.

    Args:
        rois: ROI overlays in Plotly physical coordinates.

    Returns:
        None.
    """
    self._plotly_rois.set_rois(rois)
    self._sync_roi_shapes_to_plotly_dict()
    self._relayout_shapes()

select_roi

select_roi(roi_id: int | None) -> None

Select one ROI overlay and update rectangle styling only.

Parameters:

Name	Type	Description	Default
roi_id	int | None	ROI identifier to select, or None to clear selection.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def select_roi(self, roi_id: int | None) -> None:
    """Select one ROI overlay and update rectangle styling only.

    Args:
        roi_id: ROI identifier to select, or None to clear selection.

    Returns:
        None.
    """
    self._plotly_rois.select_roi(roi_id)
    self._sync_roi_shapes_to_plotly_dict()
    self._relayout_shapes()

add_roi

add_roi(roi: RectRoiOverlay) -> None

Add or replace one ROI overlay without pushing raster data.

Parameters:

Name	Type	Description	Default
roi	RectRoiOverlay	ROI overlay in Plotly physical coordinates.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def add_roi(self, roi: RectRoiOverlay) -> None:
    """Add or replace one ROI overlay without pushing raster data.

    Args:
        roi: ROI overlay in Plotly physical coordinates.

    Returns:
        None.
    """
    self._plotly_rois.add_roi(roi)
    self._sync_roi_shapes_to_plotly_dict()
    self._relayout_shapes()

delete_roi

delete_roi(roi_id: int) -> None

Delete one ROI overlay without pushing raster data.

Parameters:

Name	Type	Description	Default
roi_id	int	ROI identifier to remove.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def delete_roi(self, roi_id: int) -> None:
    """Delete one ROI overlay without pushing raster data.

    Args:
        roi_id: ROI identifier to remove.

    Returns:
        None.
    """
    self._plotly_rois.delete_roi(roi_id)
    self._sync_roi_shapes_to_plotly_dict()
    self._relayout_shapes()

set_roi_editing

set_roi_editing(
    enabled: bool, roi_id: int | None = None
) -> None

Enable or disable direct editing for one ROI shape.

Parameters:

Name	Type	Description	Default
enabled	bool	Whether ROI shape editing should be active.	required
roi_id	int | None	ROI id to make editable when enabled is True.	None

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_roi_editing(self, enabled: bool, roi_id: int | None = None) -> None:
    """Enable or disable direct editing for one ROI shape.

    Args:
        enabled: Whether ROI shape editing should be active.
        roi_id: ROI id to make editable when ``enabled`` is True.

    Returns:
        None.
    """
    self._plotly_rois.set_roi_editing(roi_id if enabled else None)
    self._sync_plotly_config_to_plotly_dict()
    self._sync_roi_shapes_to_plotly_dict()
    self._react_plotly_config()
    self._relayout_shapes()

set_trace_overlays

set_trace_overlays(
    overlays: Sequence[PlotlyTraceOverlay],
) -> None

Replace all trace overlays without pushing raster data.

Parameters:

Name	Type	Description	Default
overlays	Sequence[PlotlyTraceOverlay]	Trace overlays in Plotly physical coordinates.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_trace_overlays(self, overlays: Sequence[PlotlyTraceOverlay]) -> None:
    """Replace all trace overlays without pushing raster data.

    Args:
        overlays: Trace overlays in Plotly physical coordinates.

    Returns:
        None.
    """
    self._plotly_trace_overlays.set_overlays(overlays)
    self._sync_trace_overlays_to_plotly_dict()
    self._redraw_trace_overlays()

add_trace_overlay

add_trace_overlay(overlay: PlotlyTraceOverlay) -> None

Add or replace one trace overlay without pushing raster data.

Parameters:

Name	Type	Description	Default
overlay	PlotlyTraceOverlay	Trace overlay in Plotly physical coordinates.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def add_trace_overlay(self, overlay: PlotlyTraceOverlay) -> None:
    """Add or replace one trace overlay without pushing raster data.

    Args:
        overlay: Trace overlay in Plotly physical coordinates.

    Returns:
        None.
    """
    self._plotly_trace_overlays.add_overlay(overlay)
    self._sync_trace_overlays_to_plotly_dict()
    self._redraw_trace_overlays()

delete_trace_overlay

delete_trace_overlay(trace_id: str) -> None

Delete one trace overlay without pushing raster data.

Parameters:

Name	Type	Description	Default
trace_id	str	Trace overlay identifier to remove.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def delete_trace_overlay(self, trace_id: str) -> None:
    """Delete one trace overlay without pushing raster data.

    Args:
        trace_id: Trace overlay identifier to remove.

    Returns:
        None.
    """
    self._plotly_trace_overlays.delete_overlay(trace_id)
    self._sync_trace_overlays_to_plotly_dict()
    self._redraw_trace_overlays()

clear_trace_overlays

clear_trace_overlays() -> None

Delete all trace overlays without pushing raster data.

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def clear_trace_overlays(self) -> None:
    """Delete all trace overlays without pushing raster data.

    Returns:
        None.
    """
    self._plotly_trace_overlays.clear_overlays()
    self._sync_trace_overlays_to_plotly_dict()
    self._redraw_trace_overlays()

set_roi_overlays_visible

set_roi_overlays_visible(visible: bool) -> None

Set ROI overlay visibility without changing ROI state.

Parameters:

Name	Type	Description	Default
visible	bool	Whether ROI shapes should be visible.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_roi_overlays_visible(self, visible: bool) -> None:
    """Set ROI overlay visibility without changing ROI state.

    Args:
        visible: Whether ROI shapes should be visible.

    Returns:
        None.
    """
    self._display_options.show_rois = bool(visible)
    self._sync_roi_shapes_to_plotly_dict()
    self._relayout_shapes()

set_roi_labels_visible

set_roi_labels_visible(visible: bool) -> None

Set ROI overlay label visibility without changing ROI state.

Parameters:

Name	Type	Description	Default
visible	bool	Whether ROI shape labels should be visible.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_roi_labels_visible(self, visible: bool) -> None:
    """Set ROI overlay label visibility without changing ROI state.

    Args:
        visible: Whether ROI shape labels should be visible.

    Returns:
        None.
    """
    self._display_options.show_roi_labels = bool(visible)
    self._sync_roi_shapes_to_plotly_dict()
    self._relayout_shapes()

set_trace_overlays_visible

set_trace_overlays_visible(visible: bool) -> None

Set managed trace overlay visibility without changing overlay state.

Parameters:

Name	Type	Description	Default
visible	bool	Whether managed trace overlays should be visible.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_trace_overlays_visible(self, visible: bool) -> None:
    """Set managed trace overlay visibility without changing overlay state.

    Args:
        visible: Whether managed trace overlays should be visible.

    Returns:
        None.
    """
    self._display_options.show_trace_overlays = bool(visible)
    self._sync_trace_overlays_to_plotly_dict()
    self._restyle_trace_overlay_visibility()

set_x_axis_labels_visible

set_x_axis_labels_visible(visible: bool) -> None

Set x-axis decoration visibility without rebuilding the plot.

Parameters:

Name	Type	Description	Default
visible	bool	Whether x-axis decorations should be visible.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_x_axis_labels_visible(self, visible: bool) -> None:
    """Set x-axis decoration visibility without rebuilding the plot.

    Args:
        visible: Whether x-axis decorations should be visible.

    Returns:
        None.
    """
    self._display_options.show_x_axis_labels = bool(visible)
    self._sync_axis_labels_to_plotly_dict()
    self._sync_margins_to_plotly_dict()
    self._sync_axis_stabilization_to_plotly_dict()
    self._relayout_axis_labels()

set_y_axis_labels_visible

set_y_axis_labels_visible(visible: bool) -> None

Set y-axis decoration visibility without rebuilding the plot.

Parameters:

Name	Type	Description	Default
visible	bool	Whether y-axis decorations should be visible.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_y_axis_labels_visible(self, visible: bool) -> None:
    """Set y-axis decoration visibility without rebuilding the plot.

    Args:
        visible: Whether y-axis decorations should be visible.

    Returns:
        None.
    """
    self._display_options.show_y_axis_labels = bool(visible)
    self._sync_axis_labels_to_plotly_dict()
    self._sync_margins_to_plotly_dict()
    self._sync_axis_stabilization_to_plotly_dict()
    self._relayout_axis_labels()

set_square_plot

set_square_plot(enabled: bool) -> None

Set whether Plotly constrains the raster plot to a square plot area.

Parameters:

Name	Type	Description	Default
enabled	bool	Whether the raster plot should be square inside its enclosing Plotly container.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_square_plot(self, enabled: bool) -> None:
    """Set whether Plotly constrains the raster plot to a square plot area.

    Args:
        enabled: Whether the raster plot should be square inside its
            enclosing Plotly container.

    Returns:
        None.
    """
    self._display_options.square_plot = bool(enabled)
    self._sync_square_plot_to_plotly_dict()
    self._relayout_square_plot()

set_theme

set_theme(theme: PlotlyThemeName) -> None

Set the Plotly raster viewer color theme.

Parameters:

Name	Type	Description	Default
theme	PlotlyThemeName	Theme name, either 'light' or 'dark'.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_theme(self, theme: PlotlyThemeName) -> None:
    """Set the Plotly raster viewer color theme.

    Args:
        theme: Theme name, either ``'light'`` or ``'dark'``.

    Returns:
        None.
    """
    self._display_options.theme = normalize_plotly_theme(theme)
    self._sync_theme_to_plotly_dict()
    self._relayout_theme()

set_dark_mode

set_dark_mode(enabled: bool) -> None

Set the Plotly raster viewer theme from a dark-mode flag.

Parameters:

Name	Type	Description	Default
enabled	bool	Whether dark mode is enabled.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_dark_mode(self, enabled: bool) -> None:
    """Set the Plotly raster viewer theme from a dark-mode flag.

    Args:
        enabled: Whether dark mode is enabled.

    Returns:
        None.
    """
    self.set_theme('dark' if enabled else 'light')

set_plotly_toolbar_visible

set_plotly_toolbar_visible(visible: bool) -> None

Set Plotly modebar visibility.

Parameters:

Name	Type	Description	Default
visible	bool	Whether Plotly's modebar should be visible.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_plotly_toolbar_visible(self, visible: bool) -> None:
    """Set Plotly modebar visibility.

    Args:
        visible: Whether Plotly's modebar should be visible.

    Returns:
        None.
    """
    self._display_options.show_plotly_toolbar = bool(visible)
    self._sync_plotly_config_to_plotly_dict()
    self._react_plotly_config()

set_hover_info_visible

set_hover_info_visible(visible: bool) -> None

Set Plotly hover-info visibility for the raster trace.

When disabled (visible=False, the default), hoverinfo='skip' is applied to the raster trace so Plotly does not display tooltips and does not emit hover events.

Parameters:

Name	Type	Description	Default
visible	bool	Whether hover info should be visible.	required

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def set_hover_info_visible(self, visible: bool) -> None:
    """Set Plotly hover-info visibility for the raster trace.

    When disabled (``visible=False``, the default), ``hoverinfo='skip'`` is
    applied to the raster trace so Plotly does not display tooltips and
    does not emit hover events.

    Args:
        visible: Whether hover info should be visible.

    Returns:
        None.
    """
    self._display_options.show_hover_info = bool(visible)
    self._sync_hover_info_to_plotly_dict()
    self._restyle_hover_info()

copy_plot_to_clipboard async

copy_plot_to_clipboard() -> None

Copy the current Plotly plot image to the native clipboard when available.

Browser/cloud mode currently reports a warning because robust image clipboard support is browser-permission dependent. Native mode uses the optional pyperclipimg stack.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

async def copy_plot_to_clipboard(self) -> None:
    """Copy the current Plotly plot image to the native clipboard when available.

    Browser/cloud mode currently reports a warning because robust image
    clipboard support is browser-permission dependent. Native mode uses the
    optional ``pyperclipimg`` stack.
    """
    if self._plot is None:
        ui.notify('No plot to copy.', type='warning')
        return

    try:
        if is_pywebview_desktop():
            png_bytes = await get_plotly_png_bytes(self._plot)
            copy_png_bytes_to_native_clipboard(png_bytes)
        else:
            await copy_plotly_png_to_browser_clipboard(self._plot)
        ui.notify('Plot copied to clipboard.', type='positive')
    except Exception as exc:
        logger.exception('Failed to copy Plotly plot to clipboard.')
        ui.notify(f'Copy failed: {exc}', type='negative')

request_from_plotly

request_from_plotly(payload: PlotlyViewportPayload)

Build a backend request from a browser relayout payload (merged axes).

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def request_from_plotly(self, payload: PlotlyViewportPayload):
    """Build a backend request from a browser relayout payload (merged axes)."""
    if self._service is None:
        raise RuntimeError('No data set. Call set_data() before requesting renders.')
    if self._transform is None:
        raise RuntimeError('Coordinate transform missing; call set_data() first.')
    merged = merge_partial_relayout(
        payload.relayout,
        self._transform,
        self._current_bounds,
    )
    merged_payload = PlotlyViewportPayload(
        relayout=merged,
        width_px=payload.width_px,
        height_px=payload.height_px,
    )
    return parse_relayout_payload(merged_payload, self._transform, self._current_bounds)

rerender_from_plotly async

rerender_from_plotly(
    payload: PlotlyViewportPayload,
    *,
    display_axis_ranges: tuple[
        tuple[float, float], tuple[float, float]
    ]
    | None = None,
) -> RenderResponse

Render and apply an updated view from a relayout payload.

Parameters:

Name	Type	Description	Default
payload	PlotlyViewportPayload	Browser viewport payload used to request raster data.	required
display_axis_ranges	tuple[tuple[float, float], tuple[float, float]] | None	Optional Plotly viewport to preserve while applying the new raster data. Relayout-driven renders pass this so a PNG/heatmap or pyramid-level swap does not reset the user-visible zoom that Plotly already applied.	None

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

async def rerender_from_plotly(
    self,
    payload: PlotlyViewportPayload,
    *,
    display_axis_ranges: tuple[tuple[float, float], tuple[float, float]] | None = None,
) -> RenderResponse:
    """Render and apply an updated view from a relayout payload.

    Args:
        payload: Browser viewport payload used to request raster data.
        display_axis_ranges: Optional Plotly viewport to preserve while
            applying the new raster data. Relayout-driven renders pass this
            so a PNG/heatmap or pyramid-level swap does not reset the
            user-visible zoom that Plotly already applied.
    """
    if self._service is None:
        raise RuntimeError('No data set. Call set_data() before requesting renders.')
    request = self.request_from_plotly(payload)
    response = self._service.render(request, display_style=self._display_style())
    await self.apply_response(response, display_axis_ranges=display_axis_ranges)
    return response

set_axis_ranges async

set_axis_ranges(
    *,
    x_min: float,
    x_max: float,
    y_min: float,
    y_max: float,
) -> None

Set visible axis ranges in plot physical coordinates (Plotly space).

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

    async def set_axis_ranges(
        self,
        *,
        x_min: float,
        x_max: float,
        y_min: float,
        y_max: float,
    ) -> None:
        """Set visible axis ranges in **plot physical** coordinates (Plotly space)."""
        if self._plot is None or self._transform is None:
            raise RuntimeError('Viewer must be built and data set before setting axis ranges.')

        self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
            x_min,
            x_max,
            y_min,
            y_max,
        )

        x_lo = float(min(x_min, x_max))
        x_hi = float(max(x_min, x_max))
        y_lo = float(min(y_min, y_max))
        y_hi = float(max(y_min, y_max))
        self._layout_pin_xy_ranges(x_lo=x_lo, x_hi=x_hi, y_lo=y_lo, y_hi=y_hi)
        display_axis_ranges = ((x_lo, x_hi), (y_lo, y_hi))
        self._last_display_axis_ranges = display_axis_ranges

        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {{
  'xaxis.range': [{json.dumps(x_lo)}, {json.dumps(x_hi)}],
  'xaxis.autorange': false,
  'yaxis.range': [{json.dumps(y_lo)}, {json.dumps(y_hi)}],
  'yaxis.autorange': false
}});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

set_x_axis_range async

set_x_axis_range(*, x_min: float, x_max: float) -> None

Set visible x (plot row / physical-x) axis range without touching y.

Parameters:

Name	Type	Description	Default
x_min	float	Minimum plot x value.	required
x_max	float	Maximum plot x value.	required

Records the applied value so debounced x-range emission does not re-fire on_x_range_changed for an echo of the same range.

The browser y-axis is left untouched so wheel-zoomed y extents are not reset by external x-range sync from other views.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

    async def set_x_axis_range(self, *, x_min: float, x_max: float) -> None:
        """Set visible **x** (plot row / physical-x) axis range without touching y.

        Args:
            x_min: Minimum plot x value.
            x_max: Maximum plot x value.

        Records the applied value so debounced x-range emission does not
        re-fire ``on_x_range_changed`` for an echo of the same range.

        The browser y-axis is left untouched so wheel-zoomed y extents are not
        reset by external x-range sync from other views.
        """
        if self._plot is None or self._transform is None:
            raise RuntimeError('Viewer must be built and data set before setting axis ranges.')

        x_lo = float(min(x_min, x_max))
        x_hi = float(max(x_min, x_max))
        new_x_range = (x_lo, x_hi)
        if self._last_display_axis_ranges is not None and _x_range_equal(
            new_x_range,
            self._last_display_axis_ranges[0],
        ):
            self._last_applied_x_range = new_x_range
            return

        if self._last_display_axis_ranges is not None:
            y_lo, y_hi = self._last_display_axis_ranges[1]
        else:
            y_lo, y_hi = self._transform.row_col_to_plot_y_range(self._current_bounds)

        self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
            x_lo,
            x_hi,
            y_lo,
            y_hi,
        )

        layout = self._plotly_dict.setdefault('layout', {})
        xaxis = layout.setdefault('xaxis', {})
        xaxis['autorange'] = False
        xaxis['range'] = [x_lo, x_hi]

        self._last_applied_x_range = new_x_range
        self._last_display_axis_ranges = ((x_lo, x_hi), (y_lo, y_hi))

        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {{
  'xaxis.range': [{json.dumps(x_lo)}, {json.dumps(x_hi)}],
  'xaxis.autorange': false
}});
"""
        self._plot.client.run_javascript(js, timeout=2.0)

reset_x_axis_to_full_extent async

reset_x_axis_to_full_extent() -> None

Reset visible x axis to the full data extent without changing y.

Used when linked 1D plots emit an auto x-range (None, None) and the raster viewer must zoom out horizontally while preserving the current y viewport. Schedules a debounced raster refresh for the new x window.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

    async def reset_x_axis_to_full_extent(self) -> None:
        """Reset visible **x** axis to the full data extent without changing y.

        Used when linked 1D plots emit an auto x-range ``(None, None)`` and the
        raster viewer must zoom out horizontally while preserving the current
        y viewport. Schedules a debounced raster refresh for the new x window.
        """
        if self._plot is None or self._transform is None:
            raise RuntimeError('Viewer must be built and data set before resetting axis ranges.')

        full_bounds = self._transform.full_row_col_bounds()
        x_lo, x_hi = self._transform.row_col_to_plot_x_range(full_bounds)
        new_x_range = (x_lo, x_hi)
        if self._last_display_axis_ranges is not None and _x_range_equal(
            new_x_range,
            self._last_display_axis_ranges[0],
        ):
            self._last_applied_x_range = new_x_range
            return

        if self._last_display_axis_ranges is not None:
            y_lo, y_hi = self._last_display_axis_ranges[1]
        else:
            y_lo, y_hi = self._transform.row_col_to_plot_y_range(self._current_bounds)

        self._current_bounds = self._transform.plot_xy_ranges_to_row_col(
            x_lo,
            x_hi,
            y_lo,
            y_hi,
        )

        layout = self._plotly_dict.setdefault('layout', {})
        xaxis = layout.setdefault('xaxis', {})
        xaxis['autorange'] = False
        xaxis['range'] = [x_lo, x_hi]

        self._last_applied_x_range = new_x_range
        self._last_display_axis_ranges = ((x_lo, x_hi), (y_lo, y_hi))

        js = f"""
{self._js_plotly_graph_div()}
Plotly.relayout(plotDiv, {{
  'xaxis.range': [{json.dumps(x_lo)}, {json.dumps(x_hi)}],
  'xaxis.autorange': false
}});
"""
        self._plot.client.run_javascript(js, timeout=2.0)
        self._schedule_viewport_settle()

reset_x_axis_range

reset_x_axis_range() -> None

Record that the next user x-range should be treated as auto.

Prefer :meth:reset_x_axis_to_full_extent when the Plotly view must actually zoom out to the full x extent while preserving y.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

def reset_x_axis_range(self) -> None:
    """Record that the next user x-range should be treated as auto.

    Prefer :meth:`reset_x_axis_to_full_extent` when the Plotly view must
    actually zoom out to the full x extent while preserving y.
    """
    self._last_applied_x_range = (None, None)

set_heatmap_contrast async

set_heatmap_contrast(*, zmin: float, zmax: float) -> None

Pin intensity window for heatmap (Plotly.restyle) and PNG overview (re-encode).

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

    async def set_heatmap_contrast(self, *, zmin: float, zmax: float) -> None:
        """Pin intensity window for heatmap (``Plotly.restyle``) and PNG overview (re-encode)."""
        z_lo, z_hi = (float(min(zmin, zmax)), float(max(zmin, zmax)))
        self._contrast_zmin = z_lo
        self._contrast_zmax = z_hi

        if self._heatmap_trace_active():
            data = self._plotly_dict.get('data', [])
            skip_restyle = False
            if isinstance(data, list) and data and isinstance(data[0], dict):
                trace0 = data[0]
                if trace0.get('zmin') == z_lo and trace0.get('zmax') == z_hi:
                    skip_restyle = True
                else:
                    trace0['zmin'] = z_lo
                    trace0['zmax'] = z_hi
            if not skip_restyle:
                js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {{
  zmin: [{json.dumps(z_lo)}],
  zmax: [{json.dumps(z_hi)}]
}}, [0]);
"""
                self._plot.client.run_javascript(js, timeout=2.0)
        elif self._image_trace_active():
            await self._refresh_full_png()
        else:
            raise RuntimeError('No raster trace to style. Load data and show a heatmap or overview image first.')

set_heatmap_colorscale async

set_heatmap_colorscale(
    colorscale: PlotlyColorscale,
) -> None

Set Plotly colorscale for heatmap and PNG overview LUT encoding.

Accepts either a built-in name ('Greys', 'Viridis', ...) or a list of [stop, color] pairs for custom 2-stop scales such as the contrast widget's inverted_grays.

Parameters:

Name	Type	Description	Default
colorscale	PlotlyColorscale	Plotly colorscale name or stop list.	required

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

    async def set_heatmap_colorscale(self, colorscale: PlotlyColorscale) -> None:
        """Set Plotly colorscale for heatmap and PNG overview LUT encoding.

        Accepts either a built-in name (``'Greys'``, ``'Viridis'``, ...) or a
        list of ``[stop, color]`` pairs for custom 2-stop scales such as the
        contrast widget's ``inverted_grays``.

        Args:
            colorscale: Plotly colorscale name or stop list.
        """
        self._heatmap_colorscale = colorscale

        if self._heatmap_trace_active():
            data = self._plotly_dict.get('data', [])
            skip_restyle = False
            if isinstance(data, list) and data and isinstance(data[0], dict):
                trace0 = data[0]
                if trace0.get('colorscale') == self._heatmap_colorscale:
                    skip_restyle = True
                else:
                    trace0['colorscale'] = self._heatmap_colorscale
            if not skip_restyle:
                js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {{
  colorscale: [{json.dumps(self._heatmap_colorscale)}]
}}, [0]);
"""
                self._plot.client.run_javascript(js, timeout=2.0)
        elif self._image_trace_active():
            await self._refresh_full_png()
        else:
            raise RuntimeError('No raster trace to style. Load data and show a heatmap or overview image first.')

set_heatmap_style async

set_heatmap_style(
    *,
    colorscale: PlotlyColorscale,
    zmin: float,
    zmax: float,
    preserve_viewport: bool = False,
) -> None

Apply colorscale and intensity window in a single browser round trip.

Equivalent to calling :meth:set_heatmap_colorscale and :meth:set_heatmap_contrast back-to-back, but issues exactly one Plotly.restyle (when a heatmap trace is active) or one PNG overview re-encode (when an image trace is active). Use this when both the LUT and the intensity window change together (e.g. ImageContrast applied for the current channel).

Parameters:

Name	Type	Description	Default
colorscale	PlotlyColorscale	Plotly colorscale name or stop list.	required
zmin	float	Minimum intensity for the colorscale mapping.	required
zmax	float	Maximum intensity for the colorscale mapping.	required
preserve_viewport	bool	When True and an overview image trace is active, re-encode the PNG without resetting axis ranges.	False

Source code in src/nicewidgets/raster_viewer/frontend/plotly_viewer.py

    async def set_heatmap_style(
        self,
        *,
        colorscale: PlotlyColorscale,
        zmin: float,
        zmax: float,
        preserve_viewport: bool = False,
    ) -> None:
        """Apply colorscale and intensity window in a single browser round trip.

        Equivalent to calling :meth:`set_heatmap_colorscale` and
        :meth:`set_heatmap_contrast` back-to-back, but issues exactly one
        ``Plotly.restyle`` (when a heatmap trace is active) or one PNG overview
        re-encode (when an image trace is active). Use this when both the LUT
        and the intensity window change together (e.g. ``ImageContrast``
        applied for the current channel).

        Args:
            colorscale: Plotly colorscale name or stop list.
            zmin: Minimum intensity for the colorscale mapping.
            zmax: Maximum intensity for the colorscale mapping.
            preserve_viewport: When ``True`` and an overview ``image`` trace is
                active, re-encode the PNG without resetting axis ranges.
        """
        z_lo, z_hi = (float(min(zmin, zmax)), float(max(zmin, zmax)))
        self._heatmap_colorscale = colorscale
        self._contrast_zmin = z_lo
        self._contrast_zmax = z_hi

        if self._heatmap_trace_active():
            # logger.debug('set_heatmap_style: restyle heatmap (zmin=%s zmax=%s)', z_lo, z_hi)
            data = self._plotly_dict.get('data', [])
            skip_restyle = False
            if isinstance(data, list) and data and isinstance(data[0], dict):
                trace0 = data[0]
                if (
                    trace0.get('colorscale') == self._heatmap_colorscale
                    and trace0.get('zmin') == z_lo
                    and trace0.get('zmax') == z_hi
                ):
                    skip_restyle = True
                else:
                    trace0['colorscale'] = self._heatmap_colorscale
                    trace0['zmin'] = z_lo
                    trace0['zmax'] = z_hi
            if not skip_restyle:
                js = f"""
{self._js_plotly_graph_div()}
Plotly.restyle(plotDiv, {{
  colorscale: [{json.dumps(self._heatmap_colorscale)}],
  zmin: [{json.dumps(z_lo)}],
  zmax: [{json.dumps(z_hi)}]
}}, [0]);
"""
                self._plot.client.run_javascript(js, timeout=2.0)
        elif self._image_trace_active():
            # logger.debug(
            #     'set_heatmap_style: re-encode overview PNG (zmin=%s zmax=%s preserve=%s)',
            #     z_lo,
            #     z_hi,
            #     preserve_viewport,
            # )
            viewport = self.get_viewport() if preserve_viewport else None
            await self._refresh_full_png(display_axis_ranges=viewport)
        else:
            raise RuntimeError(
                'No raster trace to style. Load data and show a heatmap or overview image first.'
            )

nicewidgets.raster_viewer.frontend.plotly_display_options.PlotlyRasterViewerDisplayOptions dataclass

User-facing display toggles for :class:PlotlyRasterViewer.

Parameters:

Name	Type	Description	Default
show_plotly_toolbar	bool	Whether Plotly's modebar is visible.	False
show_rois	bool	Whether rectangular ROI overlays are visible.	True
show_roi_labels	bool	Whether rectangular ROI overlay labels are visible.	True
show_trace_overlays	bool	Whether managed x/y trace overlays are visible.	True
show_x_axis_labels	bool	Whether x-axis title text, tick labels, ticks, axis lines, and grid lines are visible.	False
show_y_axis_labels	bool	Whether y-axis title text, tick labels, ticks, axis lines, and grid lines are visible.	False
show_hover_info	bool	Whether Plotly emits hover labels for the raster trace. Defaults to False to avoid clutter and reduce browser event traffic.	False
square_plot	bool	Whether Plotly should constrain the visible raster plot to a square plot area.	False
theme	PlotlyThemeName	Plotly raster viewer color theme.	'light'
layout_margins_profile	PlotlyLayoutMarginsProfile | None	Optional fixed margin profile for aligned multi-plot stacks.	None

Source code in src/nicewidgets/raster_viewer/frontend/plotly_display_options.py

@dataclass(slots=True)
class PlotlyRasterViewerDisplayOptions:
    """User-facing display toggles for :class:`PlotlyRasterViewer`.

    Args:
        show_plotly_toolbar: Whether Plotly's modebar is visible.
        show_rois: Whether rectangular ROI overlays are visible.
        show_roi_labels: Whether rectangular ROI overlay labels are visible.
        show_trace_overlays: Whether managed x/y trace overlays are visible.
        show_x_axis_labels: Whether x-axis title text, tick labels, ticks, axis
            lines, and grid lines are visible.
        show_y_axis_labels: Whether y-axis title text, tick labels, ticks, axis
            lines, and grid lines are visible.
        show_hover_info: Whether Plotly emits hover labels for the raster trace.
            Defaults to False to avoid clutter and reduce browser event traffic.
        square_plot: Whether Plotly should constrain the visible raster plot to
            a square plot area.
        theme: Plotly raster viewer color theme.
        layout_margins_profile: Optional fixed margin profile for aligned
            multi-plot stacks.
    """

    show_plotly_toolbar: bool = False
    show_rois: bool = True
    show_roi_labels: bool = True
    show_trace_overlays: bool = True
    show_x_axis_labels: bool = False
    show_y_axis_labels: bool = False
    show_hover_info: bool = False
    square_plot: bool = False
    theme: PlotlyThemeName = 'light'
    layout_margins_profile: PlotlyLayoutMarginsProfile | None = None

    def to_dict(self) -> dict[str, Any]:
        """Return a JSON-serializable representation of these options.

        ``layout_margins_profile`` is excluded (see module note). ``theme`` is a
        plain string.

        Returns:
            Mapping of serializable option names to values.
        """
        data = {name: getattr(self, name) for name in _SERIALIZABLE_FIELDS}
        data['theme'] = normalize_plotly_theme(str(self.theme))
        return data

    @classmethod
    def from_dict(cls, data: dict[str, Any]) -> PlotlyRasterViewerDisplayOptions:
        """Build display options from a mapping produced by :meth:`to_dict`.

        Unknown keys (including ``layout_margins_profile``) are ignored and
        missing keys fall back to field defaults, so the viewer stays robust
        across schema evolution.

        Args:
            data: Mapping of option names to values.

        Returns:
            New :class:`PlotlyRasterViewerDisplayOptions` instance.
        """
        kwargs: dict[str, Any] = {
            name: data[name] for name in _SERIALIZABLE_FIELDS if name in data
        }
        if 'theme' in kwargs:
            kwargs['theme'] = normalize_plotly_theme(str(kwargs['theme']))
        return cls(**kwargs)

to_dict

to_dict() -> dict[str, Any]

Return a JSON-serializable representation of these options.

layout_margins_profile is excluded (see module note). theme is a plain string.

Returns:

Type	Description
dict[str, Any]	Mapping of serializable option names to values.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_display_options.py

def to_dict(self) -> dict[str, Any]:
    """Return a JSON-serializable representation of these options.

    ``layout_margins_profile`` is excluded (see module note). ``theme`` is a
    plain string.

    Returns:
        Mapping of serializable option names to values.
    """
    data = {name: getattr(self, name) for name in _SERIALIZABLE_FIELDS}
    data['theme'] = normalize_plotly_theme(str(self.theme))
    return data

from_dict classmethod

from_dict(
    data: dict[str, Any],
) -> PlotlyRasterViewerDisplayOptions

Build display options from a mapping produced by :meth:to_dict.

Unknown keys (including layout_margins_profile) are ignored and missing keys fall back to field defaults, so the viewer stays robust across schema evolution.

Parameters:

Name	Type	Description	Default
data	dict[str, Any]	Mapping of option names to values.	required

Returns:

Name	Type	Description
New	PlotlyRasterViewerDisplayOptions	class:PlotlyRasterViewerDisplayOptions instance.

Source code in src/nicewidgets/raster_viewer/frontend/plotly_display_options.py

@classmethod
def from_dict(cls, data: dict[str, Any]) -> PlotlyRasterViewerDisplayOptions:
    """Build display options from a mapping produced by :meth:`to_dict`.

    Unknown keys (including ``layout_margins_profile``) are ignored and
    missing keys fall back to field defaults, so the viewer stays robust
    across schema evolution.

    Args:
        data: Mapping of option names to values.

    Returns:
        New :class:`PlotlyRasterViewerDisplayOptions` instance.
    """
    kwargs: dict[str, Any] = {
        name: data[name] for name in _SERIALIZABLE_FIELDS if name in data
    }
    if 'theme' in kwargs:
        kwargs['theme'] = normalize_plotly_theme(str(kwargs['theme']))
    return cls(**kwargs)
