TableWidget

TableWidget wraps NiceGUI ui.aggrid with stable string row ids, selection, optional editing, context menus, and optional AG Grid Enterprise row grouping.

Embed

from nicegui import ui
from nicewidgets.table_widget.column_def import ColumnDef
from nicewidgets.table_widget.config import TableWidgetConfig
from nicewidgets.table_widget.table_widget import TableWidget

table = TableWidget(
    [
        ColumnDef(field='path', headerName='Path'),
        ColumnDef(field='category', headerName='Category'),
    ],
    'path',
    [
        {'path': '/a.tif', 'category': 'Images'},
        {'path': '/b.csv', 'category': 'Tables'},
    ],
    config=TableWidgetConfig(
        selection_mode='single',
        show_index_column=True,
        row_group_fields=('category',),
    ),
    on_row_selected=lambda row: print(row),
)
with ui.column().classes('w-full').style('height: 24rem;'):
    table.build()
table.set_dark_mode(False)

Non-empty row_group_fields loads AG Grid Enterprise. NiceWidgets does not ship a production Enterprise license.

Theme: set_theme / set_dark_mode set AG Grid data-ag-theme-mode.

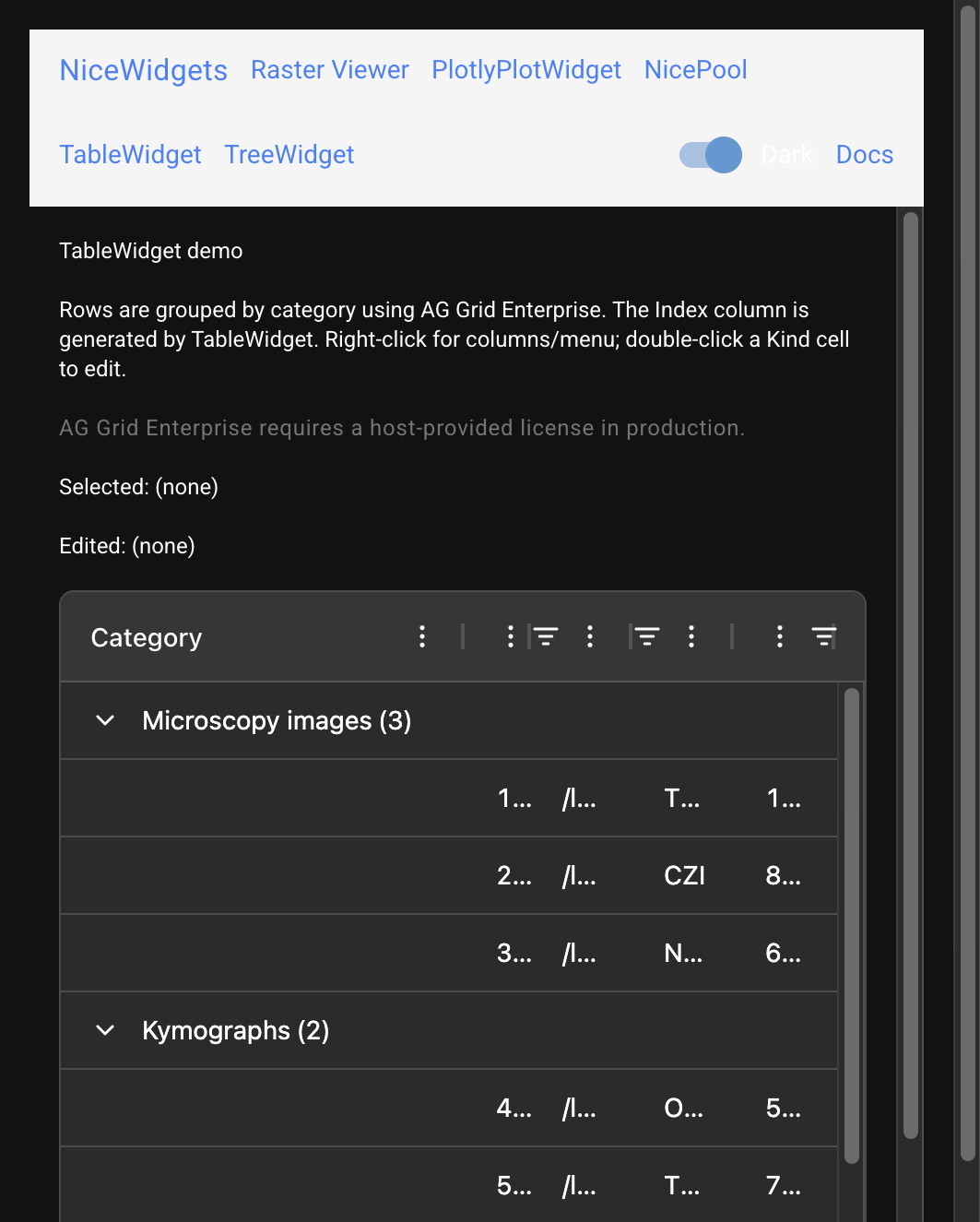

Demo: examples/table_widget/ (also /table in the combined demo).

Configuration

TableWidgetConfig covers selection, editing hooks, index column, row/header heights, grouping, and Enterprise module URL.

API

nicewidgets.table_widget.table_widget.TableWidget

NiceGUI AG Grid wrapper with selection, editing, grouping, and context menus.

The widget uses AG Grid Community by default. Setting :attr:TableWidgetConfig.row_group_fields opts into AG Grid Enterprise and groups rows by those column values in the given order. NiceWidgets loads the module but does not provide an AG Grid Enterprise production license.

Theme: call :meth:set_theme / :meth:set_dark_mode to drive AG Grid's data-ag-theme-mode (light/dark), matching the Plotly widget theme API.

Source code in src/nicewidgets/table_widget/table_widget.py

class TableWidget:
    """NiceGUI AG Grid wrapper with selection, editing, grouping, and context menus.

    The widget uses AG Grid Community by default. Setting
    :attr:`TableWidgetConfig.row_group_fields` opts into AG Grid Enterprise and
    groups rows by those column values in the given order. NiceWidgets loads
    the module but does not provide an AG Grid Enterprise production license.

    Theme: call :meth:`set_theme` / :meth:`set_dark_mode` to drive AG Grid's
    ``data-ag-theme-mode`` (light/dark), matching the Plotly widget theme API.
    """

    def __init__(
        self,
        columns: Sequence[ColumnDef],
        row_id_field: str,
        rows: Sequence[Mapping[str, Any]] | None = None,
        *,
        on_row_selected: Callable[[dict[str, Any]], None] | None = None,
        on_cell_edited: Callable[[str, str, Any, Any, dict[str, Any]], None] | None = None,
        on_build_context_menu: Callable[[TableWidget], None] | None = None,
        config: TableWidgetConfig | None = None,
        grid_options: Mapping[str, Any] | None = None,
    ) -> None:
        validate_row_id_field(row_id_field)
        self._row_id_field = row_id_field
        self._on_row_selected = on_row_selected
        self._on_cell_edited = on_cell_edited
        self._on_build_context_menu = on_build_context_menu
        self._config = config or TableWidgetConfig()
        self._grid_options_user = dict(grid_options or {})
        self._selection_origin = 'internal'
        self._row_group_fields = tuple(str(field).strip() for field in self._config.row_group_fields)
        if any(not field for field in self._row_group_fields):
            raise ValueError('row_group_fields entries must be non-empty strings')
        if len(set(self._row_group_fields)) != len(self._row_group_fields):
            raise ValueError('row_group_fields must not contain duplicates')
        if (
            isinstance(self._config.group_default_expanded, bool)
            or not isinstance(self._config.group_default_expanded, int)
            or self._config.group_default_expanded < -1
        ):
            raise ValueError('group_default_expanded must be an int greater than or equal to -1')

        application_fields = {column.field for column in columns}
        unknown_group_fields = [
            field for field in self._row_group_fields if field not in application_fields
        ]
        if unknown_group_fields:
            raise ValueError(
                f'row_group_fields contains unknown column field(s): {unknown_group_fields!r}'
            )

        self._evt_select = f'table_widget_select_{id(self)}'
        self._evt_edit = f'table_widget_edit_{id(self)}'

        self._index_field: str | None = None
        if self._config.show_index_column:
            idx_f = str(self._config.index_field).strip()
            if not idx_f:
                raise ValueError('index_field must be non-empty when show_index_column is true')
            for c in columns:
                if c.field == idx_f:
                    raise ValueError(
                        f'Column field {idx_f!r} conflicts with TableWidgetConfig.index_field; '
                        'rename the column or set a different index_field'
                    )
            self._index_field = idx_f
            index_col = ColumnDef(
                field=idx_f,
                headerName=str(self._config.index_header),
                extra={
                    'editable': False,
                    'sortable': True,
                    'filter': False,
                    'type': 'numericColumn',
                    'maxWidth': 96,
                },
            )
            built_columns = (index_col, *columns)
        else:
            built_columns = tuple(columns)

        self._column_defs: list[dict[str, Any]] = [c.as_aggrid_column_def() for c in built_columns]
        for group_index, field in enumerate(self._row_group_fields):
            column_def = next(column for column in self._column_defs if column.get('field') == field)
            column_def['rowGroup'] = True
            column_def['rowGroupIndex'] = group_index
            if self._config.hide_row_group_columns:
                column_def['hide'] = True
        self._rows: list[dict[str, Any]] = [dict(r) for r in (rows or ())]
        validate_rows_for_row_id_field(self._rows, self._row_id_field)
        self._assign_row_indices()

        self._selected_row_ids: list[str] = []
        self._selected_rows: list[dict[str, Any]] = []
        self._last_selected_row_id: str | None = None

        self._root: ui.column | None = None
        self._grid: ui.aggrid | None = None
        self._context_menu: ui.context_menu | None = None
        self._theme: TableThemeName = 'light'

        ui.on(self._evt_select, self._on_select_emitted)
        ui.on(self._evt_edit, self._on_edit_emitted)

    def _assign_row_indices(self) -> None:
        """Set 1-based row index in row data for the synthetic index column."""
        if self._index_field is None:
            return
        for i, row in enumerate(self._rows):
            row[self._index_field] = i + 1

    def build(self, parent: ui.element | None = None) -> ui.column:
        """Create the wrapper + context menu + AG Grid under ``parent``.

        When row grouping is configured, this loads the configured Enterprise
        ESM source (unless it is ``None``) and builds with
        ``modules='enterprise'``. Hosts need their own AG Grid Enterprise
        license for production use.
        """
        if self._row_group_fields and self._config.enterprise_module_url:
            ui.aggrid.set_module_source(self._config.enterprise_module_url)

        # AG Grid requires a real height from its container; provide a sane default
        # when callers do not pass a sized parent container.
        container = parent if parent is not None else ui.column().classes('w-full').style('height: 24rem;')
        with container:
            self._root = ui.column().classes('w-full h-full min-w-0 min-h-0')
            with self._root:
                self._context_menu = ui.context_menu()
                with self._context_menu:
                    self._build_context_menu_content()
                self._root.on('contextmenu', self._on_context_menu_event)
                if self._row_group_fields:
                    self._grid = ui.aggrid(
                        self._build_aggrid_options(),
                        auto_size_columns=self._config.auto_size_columns,
                        modules='enterprise',
                    )
                else:
                    self._grid = ui.aggrid(
                        self._build_aggrid_options(),
                        auto_size_columns=self._config.auto_size_columns,
                    )
                self._grid.classes('w-full h-full min-w-0 min-h-0').style('height: 100%;')
                self._apply_theme()
        return self._root


    def set_theme(self, theme: str) -> None:
        """Set the AG Grid light/dark color scheme.

        NiceGUI's ``ui.aggrid`` follows page dark mode via
        ``data-ag-theme-mode``. This method sets that attribute explicitly so
        hosts can drive table theming the same way as Plotly widgets
        (``set_theme`` / ``set_dark_mode``), independent of call order relative
        to ``ui.dark_mode``.

        Args:
            theme: Theme name, either ``'light'`` or ``'dark'``.
        """
        self._theme = normalize_table_theme(theme)
        self._apply_theme()

    def set_dark_mode(self, enabled: bool) -> None:
        """Set the AG Grid color scheme from a dark-mode flag.

        Args:
            enabled: Whether dark mode is enabled.
        """
        self.set_theme('dark' if enabled else 'light')

    def _apply_theme(self) -> None:
        """Push the current theme to the built AG Grid element, if any."""
        if self._grid is None:
            return
        self._grid.props(f'data-ag-theme-mode={self._theme}')
        self._grid.update()

    def set_enabled(self, enabled: bool) -> None:
        """Enable or disable pointer interaction with the table.

        Args:
            enabled: Desired enabled state.
        """
        enabled = bool(enabled)
        if self._root is not None:
            self._root.enabled = enabled
            if enabled:
                self._root.classes(remove='pointer-events-none opacity-60')
            else:
                self._root.classes(add='pointer-events-none opacity-60')
            self._root.update()
        if self._grid is not None:
            self._grid.enabled = enabled
            self._grid.update()

    def get_rows(self) -> list[dict[str, Any]]:
        """Return a copy of internal row data."""
        return [dict(r) for r in self._rows]

    def get_selected_rows(self) -> list[dict[str, Any]]:
        """Return last known selected rows."""
        return [dict(r) for r in self._selected_rows]

    def get_selected_row_ids(self) -> list[str]:
        """Return last known selected row ids."""
        return list(self._selected_row_ids)

    def set_selected_row_ids(self, row_ids: Sequence[str], *, origin: str = 'external') -> None:
        """Programmatically select rows by row id (selection mode aware)."""
        normalized = [str(rid) for rid in row_ids]
        if self._config.selection_mode == 'none':
            self._selected_row_ids = []
            self._selected_rows = []
            self._last_selected_row_id = None
            return
        if self._config.selection_mode == 'single':
            normalized = normalized[:1]

        row_by_id = {str(row[self._row_id_field]): dict(row) for row in self._rows}
        keep = [rid for rid in normalized if rid in row_by_id]
        self._selected_row_ids = keep
        self._selected_rows = [row_by_id[rid] for rid in keep]
        self._last_selected_row_id = keep[0] if keep else None

        if self._grid is None:
            return

        self._selection_origin = origin
        self._grid.run_grid_method('deselectAll')
        for i, rid in enumerate(keep):
            clear = bool(i == 0 and self._config.selection_mode == 'single')
            self._grid.run_row_method(rid, 'setSelected', True, clear)
        self._selection_origin = 'internal'

    def clear_selection(self) -> None:
        """Clear selected-row tracking and grid selection."""
        self._selected_row_ids = []
        self._selected_rows = []
        self._last_selected_row_id = None
        if self._grid is not None:
            self._grid.run_grid_method('deselectAll')

    def set_data(self, rows: Sequence[Mapping[str, Any]]) -> None:
        """Replace all rows and refresh the grid."""
        new_rows = [dict(r) for r in rows]
        validate_rows_for_row_id_field(new_rows, self._row_id_field)
        self._rows = new_rows
        self._assign_row_indices()
        self._push_row_data_to_grid()
        if self._config.clear_selection_on_set_data:
            self.clear_selection()

    def upsert_row(self, row: Mapping[str, Any]) -> None:
        """Insert or replace one row by ``row_id_field``."""
        validate_rows_for_row_id_field([row], self._row_id_field)
        rid = str(row[self._row_id_field])
        replacement = dict(row)
        for i, existing in enumerate(self._rows):
            if existing.get(self._row_id_field) == rid:
                self._rows[i] = replacement
                break
        else:
            self._rows.append(replacement)
        self._assign_row_indices()
        self._push_row_data_to_grid()

    def update_row(self, row_id: str, row: Mapping[str, Any]) -> None:
        """Update a single row by id, patching the row node when possible."""
        validate_rows_for_row_id_field([row], self._row_id_field)
        rid = str(row_id)
        replacement = dict(row)
        idx: int | None = None
        for i, existing in enumerate(self._rows):
            if str(existing.get(self._row_id_field)) == rid:
                idx = i
                break
        if idx is None:
            raise ValueError(f'No row with id {rid!r}')
        self._rows[idx] = replacement
        self._assign_row_indices()
        if self._grid is None:
            return
        try:
            self._grid.run_row_method(rid, 'setData', dict(self._rows[idx]))
        except RuntimeError:
            self._push_row_data_to_grid()

    def remove_row(self, row_id: str) -> None:
        """Remove row matching ``row_id``."""
        if not isinstance(row_id, str):
            raise ValueError('remove_row expects row_id: str')
        before = len(self._rows)
        self._rows = [r for r in self._rows if r.get(self._row_id_field) != row_id]
        if len(self._rows) == before:
            raise ValueError(f'No row with id {row_id!r}')
        self._assign_row_indices()
        self._push_row_data_to_grid()
        if row_id in self._selected_row_ids:
            self._selected_row_ids = [rid for rid in self._selected_row_ids if rid != row_id]
            self._selected_rows = [r for r in self._selected_rows if str(r.get(self._row_id_field)) != row_id]
            self._last_selected_row_id = self._selected_row_ids[0] if self._selected_row_ids else None

    def set_column_visible(self, field: str, visible: bool) -> None:
        """Show or hide one column by field."""
        col = self._find_column_def(field)
        col['hide'] = not visible
        self._apply_column_defs_to_grid()

    def toggle_column_visible(self, field: str) -> None:
        """Toggle one column by field."""
        vis = self.get_column_visibility()[field]
        self.set_column_visible(field, not vis)

    def get_column_visibility(self) -> dict[str, bool]:
        """Return ``field -> visible`` map."""
        return {str(c['field']): not bool(c.get('hide', False)) for c in self._column_defs}

    def get_table_as_text(self) -> str:
        """Return current Python-side table rows as tab-separated text.

        The exported data uses the widget's internal row list and current column
        visibility settings. It does not query browser-side AG Grid sort or
        filter state. Column order follows the current ``columnDefs`` order,
        and hidden columns are omitted.

        Returns:
            TSV-formatted text containing one header row and one row per table
            row. Returns an empty string when there are no rows. Tabs and
            newlines inside headers or cell values are normalized to spaces.
        """
        return self._rows_to_tsv(self._rows)

    async def get_displayed_rows(self) -> list[dict[str, Any]]:
        """Return AG Grid rows after browser-side filtering and sorting.

        AG Grid owns sort and filter state in the browser. This method uses
        NiceGUI's ``ui.run_javascript`` escape hatch to query the AG Grid API
        directly with ``forEachNodeAfterFilterAndSort``. If the grid has not
        been built yet, the method falls back to the current Python-side rows.

        Returns:
            Displayed row dictionaries in the same order the user sees them.

        Raises:
            RuntimeError: If the browser returns a non-list result.
        """
        if self._grid is None:
            return self.get_rows()

        grid_id = int(self._grid.id)
        script = f"""
            (() => {{
                const grid = getElement({grid_id});
                if (!grid || !grid.api) {{
                    throw new Error('AG Grid API is not available for table widget {grid_id}');
                }}
                const rows = [];
                grid.api.forEachNodeAfterFilterAndSort(node => rows.push(node.data));
                return rows;
            }})()
            """
        rows = await ui.run_javascript(script, timeout=5.0)
        if not rows:
            return []
        if not isinstance(rows, list):
            raise RuntimeError(f'Expected AG Grid displayed rows as list, got {type(rows).__name__}')
        return [dict(row) for row in rows if isinstance(row, dict)]

    async def get_displayed_table_as_text(self) -> str:
        """Return browser-displayed rows as tab-separated text.

        The exported rows reflect AG Grid's browser-side filtering and sorting.
        Column order and visibility use the widget's current column definitions.

        Returns:
            TSV-formatted text for the displayed row set.
        """
        return self._rows_to_tsv(await self.get_displayed_rows())

    async def copy_table_data_to_clipboard(self) -> None:
        """Copy browser-displayed table rows to the clipboard as TSV.

        Rows are read from AG Grid after filtering and sorting. If the grid has
        not been built yet, the internal Python-side rows are copied instead.

        Returns:
            None.
        """
        text = await self.get_displayed_table_as_text()
        try:
            copy_to_clipboard(text)
        except RuntimeError as exc:
            logger.warning('unable to copy table data: %s', exc)
            ui.notify(str(exc), type='negative')
            return
        ui.notify('Table data copied to clipboard', type='positive')

    def _rows_to_tsv(self, rows: Sequence[Mapping[str, Any]]) -> str:
        """Format table rows as TSV using current visible columns.

        Args:
            rows: Row dictionaries to export.

        Returns:
            TSV-formatted text containing one header row and one row per input
            row. Returns an empty string when ``rows`` is empty.
        """
        if not rows:
            return ''

        visible_columns = [c for c in self._column_defs if not bool(c.get('hide', False))]
        headers = [str(c.get('headerName', c.get('field', ''))) for c in visible_columns]
        fields = [str(c.get('field', '')) for c in visible_columns]

        lines = ['\t'.join(self._sanitize_table_text_cell(header) for header in headers)]
        for row in rows:
            values = [self._sanitize_table_text_cell(row.get(field, '')) for field in fields]
            lines.append('\t'.join(values))
        return '\n'.join(lines)

    @staticmethod
    def _sanitize_table_text_cell(value: Any) -> str:
        """Return a TSV-safe string for one table cell.

        Args:
            value: Cell value to stringify.

        Returns:
            String with tabs and line breaks normalized to spaces.
        """
        if value is None:
            return ''
        return str(value).replace('\r\n', ' ').replace('\n', ' ').replace('\r', ' ').replace('\t', ' ')

    def _find_column_def(self, field: str) -> dict[str, Any]:
        for c in self._column_defs:
            if c.get('field') == field:
                return c
        raise ValueError(f'Unknown column field {field!r}')

    def _row_selection_object(self, selection: SelectionMode) -> dict[str, Any] | None:
        if selection == 'none':
            return None
        if selection == 'single':
            return {'mode': 'singleRow', 'enableClickSelection': True, 'checkboxes': False}
        return {'mode': 'multiRow', 'enableClickSelection': True, 'checkboxes': False}

    def _build_aggrid_options(self) -> dict[str, Any]:
        default_col_def: dict[str, Any] = {'sortable': True, 'filter': True, 'resizable': True}
        px = self._config.cell_font_size_px
        if px is not None:
            try:
                n = int(px)
            except (TypeError, ValueError):
                n = None
            else:
                if n >= 1:
                    fs = f'{n}px'
                    default_col_def['cellStyle'] = {'fontSize': fs}
                    default_col_def['headerStyle'] = {'fontSize': fs}

        base: dict[str, Any] = {
            'columnDefs': copy.deepcopy(self._column_defs),
            'rowData': [dict(r) for r in self._rows],
            'defaultColDef': default_col_def,
            ':getRowId': _get_row_id_js_expression(self._row_id_field),
            ':onRowClicked': js_on_row_clicked(emit_event=self._evt_select, row_id_field=self._row_id_field),
            # AG Grid Enterprise ships its own right-click menu (Copy, Copy with
            # Headers, Export, etc.) and intercepts the contextmenu event before
            # NiceGUI's ui.context_menu can see it. TableWidget owns the
            # right-click menu via _build_context_menu_content, so suppress AG
            # Grid's menu and ask AG Grid to also block the browser's native menu
            # over the grid surface.
            'suppressContextMenu': True,
            'preventDefaultOnContextMenu': True,
        }
        rh = self._config.row_height
        if rh is not None:
            try:
                rh_i = int(rh)
            except (TypeError, ValueError):
                rh_i = 0
            if rh_i >= 1:
                base['rowHeight'] = rh_i
        hh = self._config.header_height
        if hh is not None:
            try:
                hh_i = int(hh)
            except (TypeError, ValueError):
                hh_i = 0
            if hh_i >= 1:
                base['headerHeight'] = hh_i
        if self._config.stop_editing_when_cells_lose_focus:
            base['stopEditingWhenCellsLoseFocus'] = True
        if self._config.fit_columns_on_grid_resize:
            base[':onGridSizeChanged'] = 'params => params.api.sizeColumnsToFit()'
        if self._row_group_fields:
            base['groupDefaultExpanded'] = self._config.group_default_expanded
        row_sel = self._row_selection_object(self._config.selection_mode)
        if row_sel is not None:
            base['rowSelection'] = row_sel
        if self._config.enable_keyboard_row_nav and self._config.selection_mode != 'none':
            base[':onCellKeyDown'] = js_on_cell_key_down_select_prev_next(
                emit_event=self._evt_select,
                row_id_field=self._row_id_field,
            )
        if self._config.enable_edit_on_double_click:
            base[':onCellDoubleClicked'] = js_on_cell_double_clicked_start_editing()
            base[':onCellEditingStopped'] = js_on_cell_editing_stopped_emit_change(
                emit_event=self._evt_edit,
                row_id_field=self._row_id_field,
            )
        merged = _deep_merge_aggrid_options(base, self._config.extra_grid_options)
        return _deep_merge_aggrid_options(merged, self._grid_options_user)

    def _push_row_data_to_grid(self) -> None:
        if self._grid is None:
            return
        opts = dict(self._grid.options)
        opts['rowData'] = [dict(r) for r in self._rows]
        self._grid.options = opts
        self._grid.update()

    def _apply_column_defs_to_grid(self) -> None:
        if self._grid is None:
            return
        opts = dict(self._grid.options)
        opts['columnDefs'] = copy.deepcopy(self._column_defs)
        self._grid.options = opts
        self._grid.update()

    def _build_context_menu_content(self) -> None:
        """Populate the right-click context menu.

        Caller-provided actions are shown first, followed by the generic copy
        action, then the existing column-visibility toggles.

        Returns:
            None.
        """
        if self._on_build_context_menu is not None:
            self._on_build_context_menu(self)
            ui.separator()

        ui.menu_item('Copy Table Data', on_click=self.copy_table_data_to_clipboard)
        ui.separator()

        check = '✓'
        for c in self._column_defs:
            field = str(c['field'])
            header = str(c.get('headerName', field))
            visible = not bool(c.get('hide', False))
            label = f'{check} {header}' if visible else f'  {header}'
            ui.menu_item(label, on_click=lambda f=field: self.toggle_column_visible(f))

    def _on_context_menu_event(self, _e: events.GenericEventArguments) -> None:
        if self._context_menu is None:
            return
        with self._context_menu.clear():
            self._build_context_menu_content()

    def _on_select_emitted(self, e: events.GenericEventArguments) -> None:
        if self._config.selection_mode == 'none':
            return
        if getattr(self, '_selection_origin', 'internal') != 'internal':
            return
        args: dict[str, Any] = e.args or {}
        row_id = args.get('rowId')
        row_data = args.get('data') or {}
        if row_id is None:
            return
        row_id_str = str(row_id)
        if self._config.selection_mode == 'single':
            if row_id_str == self._last_selected_row_id:
                return
            self._selected_row_ids = [row_id_str]
            self._selected_rows = [dict(row_data)] if isinstance(row_data, dict) else []
            self._last_selected_row_id = row_id_str
        else:
            if row_id_str not in self._selected_row_ids:
                self._selected_row_ids.append(row_id_str)
                if isinstance(row_data, dict):
                    self._selected_rows.append(dict(row_data))
            self._last_selected_row_id = row_id_str

        if self._on_row_selected is not None and isinstance(row_data, dict) and row_data:
            self._on_row_selected(dict(row_data))

    def _on_edit_emitted(self, e: events.GenericEventArguments) -> None:
        args: dict[str, Any] = e.args or {}
        row_id = args.get('rowId')
        col_id = args.get('colId')
        old_value = args.get('oldValue')
        new_value = args.get('newValue')
        data = args.get('data') or {}
        if row_id is None or col_id is None:
            return
        row_id_str = str(row_id)
        field = str(col_id)
        if old_value == new_value:
            return
        for i, row in enumerate(self._rows):
            if str(row.get(self._row_id_field)) == row_id_str:
                self._rows[i][field] = new_value
                break
        if self._on_cell_edited is not None and isinstance(data, dict):
            self._on_cell_edited(row_id_str, field, old_value, new_value, dict(data))

build

build(parent: element | None = None) -> ui.column

Create the wrapper + context menu + AG Grid under parent.

When row grouping is configured, this loads the configured Enterprise ESM source (unless it is None) and builds with modules='enterprise'. Hosts need their own AG Grid Enterprise license for production use.

Source code in src/nicewidgets/table_widget/table_widget.py

def build(self, parent: ui.element | None = None) -> ui.column:
    """Create the wrapper + context menu + AG Grid under ``parent``.

    When row grouping is configured, this loads the configured Enterprise
    ESM source (unless it is ``None``) and builds with
    ``modules='enterprise'``. Hosts need their own AG Grid Enterprise
    license for production use.
    """
    if self._row_group_fields and self._config.enterprise_module_url:
        ui.aggrid.set_module_source(self._config.enterprise_module_url)

    # AG Grid requires a real height from its container; provide a sane default
    # when callers do not pass a sized parent container.
    container = parent if parent is not None else ui.column().classes('w-full').style('height: 24rem;')
    with container:
        self._root = ui.column().classes('w-full h-full min-w-0 min-h-0')
        with self._root:
            self._context_menu = ui.context_menu()
            with self._context_menu:
                self._build_context_menu_content()
            self._root.on('contextmenu', self._on_context_menu_event)
            if self._row_group_fields:
                self._grid = ui.aggrid(
                    self._build_aggrid_options(),
                    auto_size_columns=self._config.auto_size_columns,
                    modules='enterprise',
                )
            else:
                self._grid = ui.aggrid(
                    self._build_aggrid_options(),
                    auto_size_columns=self._config.auto_size_columns,
                )
            self._grid.classes('w-full h-full min-w-0 min-h-0').style('height: 100%;')
            self._apply_theme()
    return self._root

set_theme

set_theme(theme: str) -> None

Set the AG Grid light/dark color scheme.

NiceGUI's ui.aggrid follows page dark mode via data-ag-theme-mode. This method sets that attribute explicitly so hosts can drive table theming the same way as Plotly widgets (set_theme / set_dark_mode), independent of call order relative to ui.dark_mode.

Parameters:

Name	Type	Description	Default
theme	str	Theme name, either 'light' or 'dark'.	required

Source code in src/nicewidgets/table_widget/table_widget.py

def set_theme(self, theme: str) -> None:
    """Set the AG Grid light/dark color scheme.

    NiceGUI's ``ui.aggrid`` follows page dark mode via
    ``data-ag-theme-mode``. This method sets that attribute explicitly so
    hosts can drive table theming the same way as Plotly widgets
    (``set_theme`` / ``set_dark_mode``), independent of call order relative
    to ``ui.dark_mode``.

    Args:
        theme: Theme name, either ``'light'`` or ``'dark'``.
    """
    self._theme = normalize_table_theme(theme)
    self._apply_theme()

set_dark_mode

set_dark_mode(enabled: bool) -> None

Set the AG Grid color scheme from a dark-mode flag.

Parameters:

Name	Type	Description	Default
enabled	bool	Whether dark mode is enabled.	required

Source code in src/nicewidgets/table_widget/table_widget.py

def set_dark_mode(self, enabled: bool) -> None:
    """Set the AG Grid color scheme from a dark-mode flag.

    Args:
        enabled: Whether dark mode is enabled.
    """
    self.set_theme('dark' if enabled else 'light')

set_enabled

set_enabled(enabled: bool) -> None

Enable or disable pointer interaction with the table.

Parameters:

Name	Type	Description	Default
enabled	bool	Desired enabled state.	required

Source code in src/nicewidgets/table_widget/table_widget.py

def set_enabled(self, enabled: bool) -> None:
    """Enable or disable pointer interaction with the table.

    Args:
        enabled: Desired enabled state.
    """
    enabled = bool(enabled)
    if self._root is not None:
        self._root.enabled = enabled
        if enabled:
            self._root.classes(remove='pointer-events-none opacity-60')
        else:
            self._root.classes(add='pointer-events-none opacity-60')
        self._root.update()
    if self._grid is not None:
        self._grid.enabled = enabled
        self._grid.update()

get_rows

get_rows() -> list[dict[str, Any]]

Return a copy of internal row data.

Source code in src/nicewidgets/table_widget/table_widget.py

def get_rows(self) -> list[dict[str, Any]]:
    """Return a copy of internal row data."""
    return [dict(r) for r in self._rows]

get_selected_rows

get_selected_rows() -> list[dict[str, Any]]

Return last known selected rows.

Source code in src/nicewidgets/table_widget/table_widget.py

def get_selected_rows(self) -> list[dict[str, Any]]:
    """Return last known selected rows."""
    return [dict(r) for r in self._selected_rows]

get_selected_row_ids

get_selected_row_ids() -> list[str]

Return last known selected row ids.

Source code in src/nicewidgets/table_widget/table_widget.py

def get_selected_row_ids(self) -> list[str]:
    """Return last known selected row ids."""
    return list(self._selected_row_ids)

set_selected_row_ids

set_selected_row_ids(
    row_ids: Sequence[str], *, origin: str = 'external'
) -> None

Programmatically select rows by row id (selection mode aware).

Source code in src/nicewidgets/table_widget/table_widget.py

def set_selected_row_ids(self, row_ids: Sequence[str], *, origin: str = 'external') -> None:
    """Programmatically select rows by row id (selection mode aware)."""
    normalized = [str(rid) for rid in row_ids]
    if self._config.selection_mode == 'none':
        self._selected_row_ids = []
        self._selected_rows = []
        self._last_selected_row_id = None
        return
    if self._config.selection_mode == 'single':
        normalized = normalized[:1]

    row_by_id = {str(row[self._row_id_field]): dict(row) for row in self._rows}
    keep = [rid for rid in normalized if rid in row_by_id]
    self._selected_row_ids = keep
    self._selected_rows = [row_by_id[rid] for rid in keep]
    self._last_selected_row_id = keep[0] if keep else None

    if self._grid is None:
        return

    self._selection_origin = origin
    self._grid.run_grid_method('deselectAll')
    for i, rid in enumerate(keep):
        clear = bool(i == 0 and self._config.selection_mode == 'single')
        self._grid.run_row_method(rid, 'setSelected', True, clear)
    self._selection_origin = 'internal'

clear_selection

clear_selection() -> None

Clear selected-row tracking and grid selection.

Source code in src/nicewidgets/table_widget/table_widget.py

def clear_selection(self) -> None:
    """Clear selected-row tracking and grid selection."""
    self._selected_row_ids = []
    self._selected_rows = []
    self._last_selected_row_id = None
    if self._grid is not None:
        self._grid.run_grid_method('deselectAll')

set_data

set_data(rows: Sequence[Mapping[str, Any]]) -> None

Replace all rows and refresh the grid.

Source code in src/nicewidgets/table_widget/table_widget.py

def set_data(self, rows: Sequence[Mapping[str, Any]]) -> None:
    """Replace all rows and refresh the grid."""
    new_rows = [dict(r) for r in rows]
    validate_rows_for_row_id_field(new_rows, self._row_id_field)
    self._rows = new_rows
    self._assign_row_indices()
    self._push_row_data_to_grid()
    if self._config.clear_selection_on_set_data:
        self.clear_selection()

upsert_row

upsert_row(row: Mapping[str, Any]) -> None

Insert or replace one row by row_id_field.

Source code in src/nicewidgets/table_widget/table_widget.py

def upsert_row(self, row: Mapping[str, Any]) -> None:
    """Insert or replace one row by ``row_id_field``."""
    validate_rows_for_row_id_field([row], self._row_id_field)
    rid = str(row[self._row_id_field])
    replacement = dict(row)
    for i, existing in enumerate(self._rows):
        if existing.get(self._row_id_field) == rid:
            self._rows[i] = replacement
            break
    else:
        self._rows.append(replacement)
    self._assign_row_indices()
    self._push_row_data_to_grid()

update_row

update_row(row_id: str, row: Mapping[str, Any]) -> None

Update a single row by id, patching the row node when possible.

Source code in src/nicewidgets/table_widget/table_widget.py

def update_row(self, row_id: str, row: Mapping[str, Any]) -> None:
    """Update a single row by id, patching the row node when possible."""
    validate_rows_for_row_id_field([row], self._row_id_field)
    rid = str(row_id)
    replacement = dict(row)
    idx: int | None = None
    for i, existing in enumerate(self._rows):
        if str(existing.get(self._row_id_field)) == rid:
            idx = i
            break
    if idx is None:
        raise ValueError(f'No row with id {rid!r}')
    self._rows[idx] = replacement
    self._assign_row_indices()
    if self._grid is None:
        return
    try:
        self._grid.run_row_method(rid, 'setData', dict(self._rows[idx]))
    except RuntimeError:
        self._push_row_data_to_grid()

remove_row

remove_row(row_id: str) -> None

Remove row matching row_id.

Source code in src/nicewidgets/table_widget/table_widget.py

def remove_row(self, row_id: str) -> None:
    """Remove row matching ``row_id``."""
    if not isinstance(row_id, str):
        raise ValueError('remove_row expects row_id: str')
    before = len(self._rows)
    self._rows = [r for r in self._rows if r.get(self._row_id_field) != row_id]
    if len(self._rows) == before:
        raise ValueError(f'No row with id {row_id!r}')
    self._assign_row_indices()
    self._push_row_data_to_grid()
    if row_id in self._selected_row_ids:
        self._selected_row_ids = [rid for rid in self._selected_row_ids if rid != row_id]
        self._selected_rows = [r for r in self._selected_rows if str(r.get(self._row_id_field)) != row_id]
        self._last_selected_row_id = self._selected_row_ids[0] if self._selected_row_ids else None

set_column_visible

set_column_visible(field: str, visible: bool) -> None

Show or hide one column by field.

Source code in src/nicewidgets/table_widget/table_widget.py

def set_column_visible(self, field: str, visible: bool) -> None:
    """Show or hide one column by field."""
    col = self._find_column_def(field)
    col['hide'] = not visible
    self._apply_column_defs_to_grid()

toggle_column_visible

toggle_column_visible(field: str) -> None

Toggle one column by field.

Source code in src/nicewidgets/table_widget/table_widget.py

def toggle_column_visible(self, field: str) -> None:
    """Toggle one column by field."""
    vis = self.get_column_visibility()[field]
    self.set_column_visible(field, not vis)

get_column_visibility

get_column_visibility() -> dict[str, bool]

Return field -> visible map.

Source code in src/nicewidgets/table_widget/table_widget.py

def get_column_visibility(self) -> dict[str, bool]:
    """Return ``field -> visible`` map."""
    return {str(c['field']): not bool(c.get('hide', False)) for c in self._column_defs}

get_table_as_text

get_table_as_text() -> str

Return current Python-side table rows as tab-separated text.

The exported data uses the widget's internal row list and current column visibility settings. It does not query browser-side AG Grid sort or filter state. Column order follows the current columnDefs order, and hidden columns are omitted.

Returns:

Type	Description
str	TSV-formatted text containing one header row and one row per table
str	row. Returns an empty string when there are no rows. Tabs and
str	newlines inside headers or cell values are normalized to spaces.

Source code in src/nicewidgets/table_widget/table_widget.py

def get_table_as_text(self) -> str:
    """Return current Python-side table rows as tab-separated text.

    The exported data uses the widget's internal row list and current column
    visibility settings. It does not query browser-side AG Grid sort or
    filter state. Column order follows the current ``columnDefs`` order,
    and hidden columns are omitted.

    Returns:
        TSV-formatted text containing one header row and one row per table
        row. Returns an empty string when there are no rows. Tabs and
        newlines inside headers or cell values are normalized to spaces.
    """
    return self._rows_to_tsv(self._rows)

get_displayed_rows async

get_displayed_rows() -> list[dict[str, Any]]

Return AG Grid rows after browser-side filtering and sorting.

AG Grid owns sort and filter state in the browser. This method uses NiceGUI's ui.run_javascript escape hatch to query the AG Grid API directly with forEachNodeAfterFilterAndSort. If the grid has not been built yet, the method falls back to the current Python-side rows.

Returns:

Type	Description
list[dict[str, Any]]	Displayed row dictionaries in the same order the user sees them.

Raises:

Type	Description
RuntimeError	If the browser returns a non-list result.

Source code in src/nicewidgets/table_widget/table_widget.py

async def get_displayed_rows(self) -> list[dict[str, Any]]:
    """Return AG Grid rows after browser-side filtering and sorting.

    AG Grid owns sort and filter state in the browser. This method uses
    NiceGUI's ``ui.run_javascript`` escape hatch to query the AG Grid API
    directly with ``forEachNodeAfterFilterAndSort``. If the grid has not
    been built yet, the method falls back to the current Python-side rows.

    Returns:
        Displayed row dictionaries in the same order the user sees them.

    Raises:
        RuntimeError: If the browser returns a non-list result.
    """
    if self._grid is None:
        return self.get_rows()

    grid_id = int(self._grid.id)
    script = f"""
        (() => {{
            const grid = getElement({grid_id});
            if (!grid || !grid.api) {{
                throw new Error('AG Grid API is not available for table widget {grid_id}');
            }}
            const rows = [];
            grid.api.forEachNodeAfterFilterAndSort(node => rows.push(node.data));
            return rows;
        }})()
        """
    rows = await ui.run_javascript(script, timeout=5.0)
    if not rows:
        return []
    if not isinstance(rows, list):
        raise RuntimeError(f'Expected AG Grid displayed rows as list, got {type(rows).__name__}')
    return [dict(row) for row in rows if isinstance(row, dict)]

get_displayed_table_as_text async

get_displayed_table_as_text() -> str

Return browser-displayed rows as tab-separated text.

The exported rows reflect AG Grid's browser-side filtering and sorting. Column order and visibility use the widget's current column definitions.

Returns:

Type	Description
str	TSV-formatted text for the displayed row set.

Source code in src/nicewidgets/table_widget/table_widget.py

async def get_displayed_table_as_text(self) -> str:
    """Return browser-displayed rows as tab-separated text.

    The exported rows reflect AG Grid's browser-side filtering and sorting.
    Column order and visibility use the widget's current column definitions.

    Returns:
        TSV-formatted text for the displayed row set.
    """
    return self._rows_to_tsv(await self.get_displayed_rows())

copy_table_data_to_clipboard async

copy_table_data_to_clipboard() -> None

Copy browser-displayed table rows to the clipboard as TSV.

Rows are read from AG Grid after filtering and sorting. If the grid has not been built yet, the internal Python-side rows are copied instead.

Returns:

Type	Description
None	None.

Source code in src/nicewidgets/table_widget/table_widget.py

async def copy_table_data_to_clipboard(self) -> None:
    """Copy browser-displayed table rows to the clipboard as TSV.

    Rows are read from AG Grid after filtering and sorting. If the grid has
    not been built yet, the internal Python-side rows are copied instead.

    Returns:
        None.
    """
    text = await self.get_displayed_table_as_text()
    try:
        copy_to_clipboard(text)
    except RuntimeError as exc:
        logger.warning('unable to copy table data: %s', exc)
        ui.notify(str(exc), type='negative')
        return
    ui.notify('Table data copied to clipboard', type='positive')

nicewidgets.table_widget.config.TableWidgetConfig dataclass

Grid-level options for TableWidget.

Attributes:

Name	Type	Description
selection_mode	SelectionMode	Row selection behavior.
clear_selection_on_set_data	bool	Clear tracked/grid selection when replacing all rows.
enable_edit_on_double_click	bool	Start edit on double-click and emit edit-finished events.
enable_keyboard_row_nav	bool	ArrowUp/ArrowDown select previous/next displayed row.
stop_editing_when_cells_lose_focus	bool	End edits when focus leaves the grid.
auto_size_columns	bool	Forwarded to ui.aggrid(auto_size_columns=...).
fit_columns_on_grid_resize	bool	When true, AG Grid calls sizeColumnsToFit after browser-side grid size changes. Defaults to false so existing tables keep their current resize behavior unless opted in.
cell_font_size_px	int | None	When set, cell and header font size in pixels (merged into defaultColDef). When None, AG Grid theme defaults apply.
row_height	int | None	Optional fixed row height (px) for AG Grid rowHeight. When None, the option is omitted (theme/browser default).
header_height	int | None	Optional fixed header row height (px) for headerHeight. When None, the option is omitted.
extra_grid_options	dict[str, Any]	Additional AG Grid options merged before grid_options.
show_index_column	bool	When true, prepend a synthetic 1-based Index column (stored in row data at index_field); values follow rowData list order so they move with rows when the grid is sorted by other columns.
index_field	str	Row dict / AG Grid field name for the index column (must not collide with application row keys).
index_header	str	Column header label for the index column.
row_group_fields	tuple[str, ...]	Ordered application column fields used as AG Grid Enterprise row-group categories. Empty keeps the community module.
group_default_expanded	int	Number of grouping levels expanded initially. 0 collapses all groups; -1 expands all groups.
hide_row_group_columns	bool	Hide source category columns after their values move into AG Grid's generated group column.
enterprise_module_url	str | None	AG Grid Enterprise ESM module URL passed to ui.aggrid.set_module_source when row_group_fields is not empty. None assumes the host configured the module source. Enabling the module does not provide a production license.

Source code in src/nicewidgets/table_widget/config.py

@dataclass(frozen=True, slots=True)
class TableWidgetConfig:
    """Grid-level options for ``TableWidget``.

    Attributes:
        selection_mode: Row selection behavior.
        clear_selection_on_set_data: Clear tracked/grid selection when replacing all rows.
        enable_edit_on_double_click: Start edit on double-click and emit edit-finished events.
        enable_keyboard_row_nav: ArrowUp/ArrowDown select previous/next displayed row.
        stop_editing_when_cells_lose_focus: End edits when focus leaves the grid.
        auto_size_columns: Forwarded to ``ui.aggrid(auto_size_columns=...)``.
        fit_columns_on_grid_resize: When true, AG Grid calls ``sizeColumnsToFit``
            after browser-side grid size changes. Defaults to false so existing
            tables keep their current resize behavior unless opted in.
        cell_font_size_px: When set, cell and header font size in pixels (merged into
            ``defaultColDef``). When ``None``, AG Grid theme defaults apply.
        row_height: Optional fixed row height (px) for AG Grid ``rowHeight``. When
            ``None``, the option is omitted (theme/browser default).
        header_height: Optional fixed header row height (px) for ``headerHeight``.
            When ``None``, the option is omitted.
        extra_grid_options: Additional AG Grid options merged before ``grid_options``.
        show_index_column: When true, prepend a synthetic 1-based ``Index`` column
            (stored in row data at ``index_field``); values follow ``rowData`` list
            order so they move with rows when the grid is sorted by other columns.
        index_field: Row dict / AG Grid field name for the index column (must not
            collide with application row keys).
        index_header: Column header label for the index column.
        row_group_fields: Ordered application column fields used as AG Grid
            Enterprise row-group categories. Empty keeps the community module.
        group_default_expanded: Number of grouping levels expanded initially.
            ``0`` collapses all groups; ``-1`` expands all groups.
        hide_row_group_columns: Hide source category columns after their values
            move into AG Grid's generated group column.
        enterprise_module_url: AG Grid Enterprise ESM module URL passed to
            ``ui.aggrid.set_module_source`` when ``row_group_fields`` is not
            empty. ``None`` assumes the host configured the module source.
            Enabling the module does not provide a production license.
    """

    selection_mode: SelectionMode = 'single'
    clear_selection_on_set_data: bool = True
    enable_edit_on_double_click: bool = True
    enable_keyboard_row_nav: bool = True
    stop_editing_when_cells_lose_focus: bool = True
    auto_size_columns: bool = True
    fit_columns_on_grid_resize: bool = False
    cell_font_size_px: int | None = None
    row_height: int | None = None
    header_height: int | None = None
    extra_grid_options: dict[str, Any] = field(default_factory=dict)
    show_index_column: bool = True
    index_field: str = 'table_row_index'
    index_header: str = 'Index'
    row_group_fields: tuple[str, ...] = ()
    group_default_expanded: int = 1
    hide_row_group_columns: bool = True
    enterprise_module_url: str | None = DEFAULT_AG_GRID_ENTERPRISE_MODULE_URL
